Seating Layouts {BMNT-5}

This option consists of two blocks and is used to define the various seating layouts that can exist for the various functions that may be held.

Fields in the option:

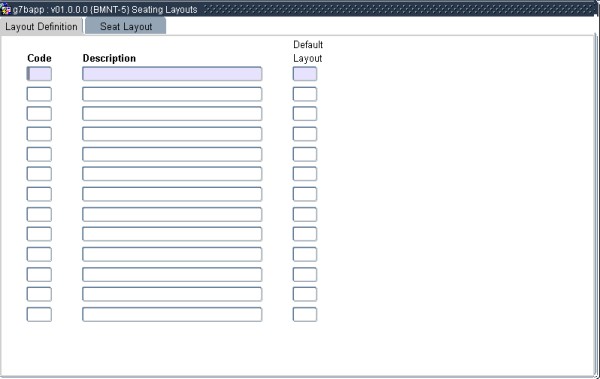

Block 1: Layou Definition

Field	Type & Length	Description
Layout Code	N3	A unique code to identify the layout.
Default Layout	A1	The default layout to be used when a booking is entered. Only one layout can be set to be default layout.

Example:

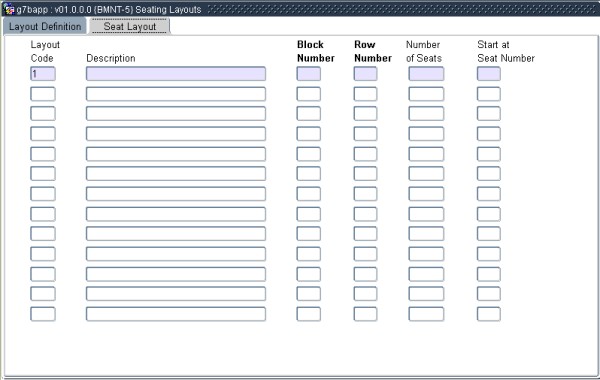

Block 2: Seat Layout

Field	Type & Length	Description
Layout Code	N3	A unique code to identify the layout.
Block Number	A2	Multiple block codes can be linked to a layout code.
Row Number	A2	Multiple rows can be linked to a block.
Number of Seats	N5	The maximum number of seats per row number.
Start at Seat Number	N3	From the number of seats, the automatic allocation program {BOPR1-1} requires a seat number to start with in the allocation process.

Example:

Processing Rules
	No special processing rules
