The option is used to define function groups and link functions together per group.
Functions are ITS defined and relates to a system function and action that can be performed for example "Create a Request". Groups allow us to link function together. The purpose of linking functions is to group together functions where the rule and users performing the actions are the same. A function is linked to a group with an effective date which allows a function to be added or removed form a group as required. When adding or removing functions to / from a group, the group must be linked to entities and rules to be effective. Only functions of the same action type may be linked together in a group.
The application consist of 3 blocks

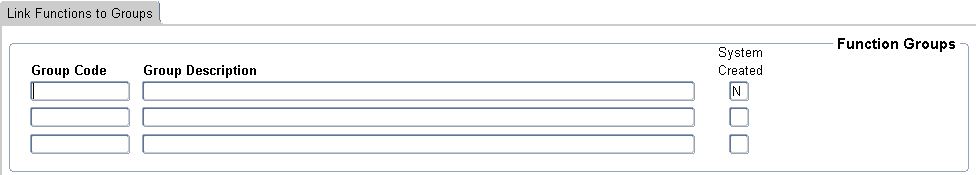

Block 1 - Define and query function groups and descriptions.

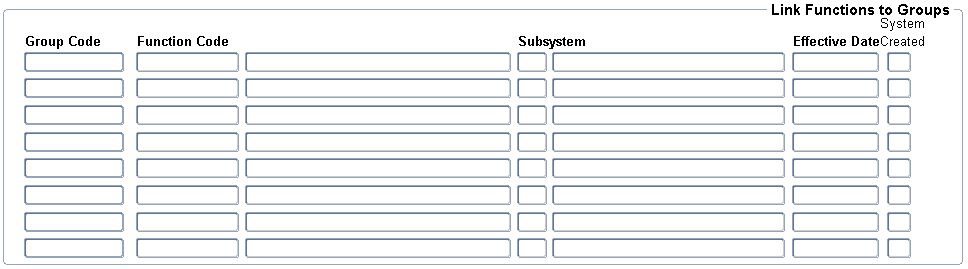

Block 2 - Links a function to a group.

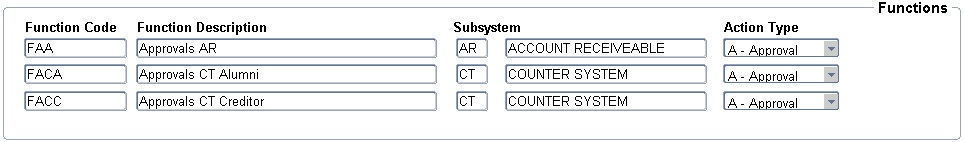

Block 3 - Allows the query and display of ITS defined system functions.
Some Group Functions and the functions linked to these groups are ITS defined and cannot be update or deleted by trhe user.
Field | Type & Length |
Description |
---|---|---|
Group Code | A8 | A unique code to identify a group. The code must be in the range 0 - ZZZZZZZZ. |
Group Description | A40 | A description that describes the group. |
|
The group must exist in block 1 to
be able to be linked to a function. Only functions of the same action
type may be linked together in a group. A function may exist in
multiple groups but is only effective in the group from the effective
date.
Field | Type & Length |
Description |
---|---|---|
Group Code | A8 | A group is defined in block 2 of this application. |
Function Code | A8 | A ITS system function as per block 1 of this application. |
Subsystem | A2 | Displays the subsystem as linked to the function. The subsystem defaults from the function code and is not updateable. |
Effective Date | DD-MON-YYYY | The effective from which a function belongs to a group.
|
Subsystem Created | A1 | Indicates that the record was created by a user or a install script. |
|
Functions are ITS defined and the user cannot delete or add from this block.
Field | Type & Length |
Description |
---|---|---|
Function Code | A8 | ITS defined system function that relates to a function that can be performed in the system for example "Create Request" |
Subsystem | A2 | The financial subsystem in which the function is used. |
Action Type | A1 | The user action that is controlled through the function. Valid action types are:
|
|
Subsystem | Function Code | Function Description | Function Type | Where used in the system |
AR | FAA | Approvals AR | Approval | The function restricts users approving Accounts Receivable Invoices and Credit Notes originating form {FARO-1} or {FARO-29} in their area of responsibility where the system was set to user approvals – approvals are done in {FARO-11}. |
CT | FACA | Approvals CT Alumni | Approval | Payments originating form {FCTO-6} where the person type on the payment is Alumni and the system is set to users approvals – approvals are done in {FCTO-10}. The function restricts users to approving payments for the person type in the area of responsibility. |
CT | FACC | Approvals CT Creditor | Approval | Payments originating form {FCTO-6} where the person type on the payment is Creditors and the system is set to users approvals – approvals are done in {FCTO-10}. The function restricts users to approving payments for the person type in the area of responsibility. |
CT | FACD | Approvals CT Debtor | Approval | Payments originating form {FCTO-6} where the person type on the payment is Debtors and the system is set to users approvals – approvals are done in {FCTO-10}. The function restricts users to approving payments for the person type in the area of responsibility. |
CT | FACO | Approvals CT Other | Approval | Payments originating form {FCTO-6} where the person type on the payment is Other and the system is set to users approvals – approvals are done in {FCTO-10}. The function restricts users to approving payments for the person type in the area of responsibility. |
CT | FACP | Approvals CT Personnel | Approval | Payments originating form {FCTO-6} where the person type on the payment is Personal and the system set to users approvals – approvals are done in {FCTO-10}. The function restricts users to approving payments for the person type in the area of responsibility. |
CT | FACS | Approvals CT Student | Approval | Payments originating form {FCTO-6} where the person type on the payment is Student Debtors and the system set to users approvals – approvals are done in {FCTO-10}. The function restricts users to approving payments for the person type in the area of responsibility. |
GL | FAGA | Approvals GL Actual Journal | Approval | General Ledger journals, type Actuals created through {FGLO-1} or {FGLO-2} where the system set to users approvals – approvals are done in {FGLO-6}. The function restricts users to approving GL journals in their area of responsibility. |
GL | FAGB | Approvals GL Budget Journal | Approval | General Ledger journals, type Budget created through {FGLO-1} or {FGLO-2} where the system set to users approvals – approvals are done in {FGLO-6}. The function restricts users to approving GL journals in their area of responsibility. |
PM | FAPC | Approvals PM Creditor | Approval | Accounts Payable Invoices /Credit Notes created through {FPMO5-1} or {FPMO5-10} where the system set to users approvals – approvals are done in {FPMO5-4}. The function restricts users to approving Invoice / Credit Notes in their area of responsibility. |
PM | FAPG | Approvals PM GRV | Approval | Goods Received Vouchers created through {FPMO3-1} where the system is set to users approvals – GRV approvals are done in {FPMO3-3}. The function restricts users to approving GRV’s in their area of responsibility. |
PM | FAPO | Approvals PM Order | Approval | Orders created through {FPMO2-1} or {FPMO2-6} where the system is set to users approvals – Order approvals are done in {FPMO2-3}. The function restricts users to approving Orders in their area of responsibility. |
PM | FAPR | Approvals PM Requestion | Approval | Requisitions created through {FPMO2-1} where the system is set to user approvals or the finance iEnabler – Web request approvals are done on the web approval option and back office request in {FPMO1-5}. The function restricts users to approving requisitions in their area of responsibility. |
SD | FAS | Approvals Student Debtor | Approval | Student Debtor journals created through {FSAO-1} where the system is set to user approvals –approvals are done in {FSAO-9}. The function restricts users to approving student debtor journals in their area of responsibility. |
PM | FPDCD | Cheque Request Validator - Document | Document | The function restricts users when doing payment validations {FCTO-11} based on the total value of the document. |
PM | FPDGD | Maintain GRV - Document | Document | The function restricts users in processing GRV’s {FPMO3-1} or finance iEnabler web GRV based on the total value of the GRV. |
PM | FPDOD | Maintain Orders - Document | Document | The function restricts users in processing orders {FPMO2-1}, {FPMO2-6} based on the total value of the order. |
PM | FPDRD | Maintain Request - Document | Document | The function restricts users in processing requisition based on the total value of the requisition. |
CT | FFCA | Override Funds CT Alumni | Insufficient Funds | Payments originating from {FCTO-6} where the person type on the payment is Alumni and the system is set to perform budget control and the funds available is insufficient. The function restricts users to override the insufficient funds for the person type in the area of responsibility. |
CT | FFCC | Override Funds CT Creditor | Insufficient Funds | Payments originating form {FCTO-6} where the person type on the payment is Creditor and the system is set to perform budget control and the funds available is insufficient. The function restricts users to override the insufficient funds for the person type in the area of responsibility. |
CT | FFCD | Override Funds CT Debtor | Insufficient Funds | Payments originating form {FCTO-6} where the person type on the payment is Debtor and the system is set to perform budget control and the funds available is insufficient. The function restricts users to override the insufficient funds for the person type in the area of responsibility. |
CT | FFCO | Override Funds CT Other | Insufficient Funds | Payments originating form {FCTO-6} where the person type on the payment is Other and the system is set to perform budget control and the funds available are insufficient. The function restricts users to override the insufficient funds for the person type in the area of responsibility. |
CT | FFCP | Override Funds CT Personnel | Insufficient Funds | Payments originating form {FCTO-6} where the person type on the payment is Personal and the system is set to perform budget control and the funds available are insufficient. The function restricts users to override the insufficient funds for the person type in the area of responsibility. |
CT | FFCS | Override Funds CT Student | Insufficient Funds | Payments originating form {FCTO-6} where the person type on the payment is Student Debtor and the system is set to perform budget control and the funds available are insufficient. The function restricts users to override the insufficient funds for the person type in the area of responsibility. |
GL | FFGA | Override Funds GL Actual Journal | Insufficient Funds | General Ledger journals originating from {FGLO-1} or {FGLO2} where the journals type is Actual journals and the system is set to perform budget control and the funds available are insufficient. The function restricts users to override the insufficient funds for the journals type Actual journals in the area of responsibility. |
PM | FFPC | Override Funds PM Creditor | Insufficient Funds | Where the system is set to perform budget control and funds available on Accounts Payable Invoice are insufficient. The function restricts users to override the insufficient funds on Invoices in the area of responsibility – funds are overridden on Invoice when they are processed in {FPMO5-1} or {FPMO5-10}. |
PM | FFPO | Override Funds PM Order | Insufficient Funds | Where the system is set to perform budget control and funds available on Order are insufficient. The function restricts users to override the insufficient funds on requisitions in the area of responsibility – funds can be overridden in {FPMO2-2} on orders. |
PM | FFPR | Override Funds PM Requestion | Insufficient Funds | Where the system is set to perform budget control and funds available on Requisitions are insufficient. The function restricts users to override the insufficient funds on requisitions in the area of responsibility – funds can be overridden in the finance iEnabler Approval option or {FPMO1-4} back office requests. |
SD | FFS | Override Funds Student Debtor | Insufficient Funds | Future development |
PM | FPDCI | Cheque Request Validator - Item | Item | The function restricts users when doing payment validations {FCTO-11} based on the value of an item on the requisition. |
PM | FPDGI | Maintain GRV - Item | Item | The function restricts users in processing GRV’s {FPMO3-1} or finance iEnabler web GRV based on the value of an item on the GRV. |
PM | FPDOI | Maintain Orders - Item | Item | The function restricts users in processing orders {FPMO2-1}, {FPMO2-6} based on the total value of an item on the order. |
PM | FPDRI | Maintain Request - Item | Item | The function restricts users in processing requisition based on the total value of the requisition. |
PM | FPDC | Cheque Request Validator | Maintenance | The function restricts users in processing payment request validations {FCTO-11}, based on the GLA and item value. |
PM | FPDG | Maintain GRV | Maintenance | The function restricts users in processing Goods Received Voucher, finance iEnabler web GRV or back office GRV {FPMO3-1}, based on the GLA and item value. |
PM | FPDO | Maintain Orders | Maintenance | The function restricts users in processing Orders, {FPMO2-1} / {FPMO2-6}, based on the GLA and item value |
PM | FPDR | Maintain Request | Maintenance | The function restricts users in processing requisition, finance iEnabler web request or back office requests {FPMO1-1}, based on the GLA and item value. |
GL | FGLB | General Ledger Reports | View GL Information | The function restricts users from viewing General Ledger information to their area of responsibility. |
AR | FGLW | View Subsystem Detail - AR | View GL Information | The function allows users to drill down on a General Ledger query on accounts receivable transactions. |
CB | FGLW | View Subsystem Detail - CB | View GL Information | The function allows users to drill down on a General Ledger query on cash book transactions - finance iEnabler GL Query . |
CT | FGLW | View Subsystem Detail - CT | View GL Information | The function allows users to drill down on a General Ledger query on counter system transactions - finance iEnabler GL Query . |
PM | FGLW | View Subsystem Detail - PM | View GL Information | The function allows users to drill down on a General Ledger query on procurement transactions - finance iEnabler GL Query . |
PR | FGLW | View Subsystem Detail - PR | View GL Information | The function allows users to drill down on a General Ledger query on payroll transactions - finance iEnabler GL Query . |
SD | FGLW | View Subsystem Detail - SD | View GL Information | The function allows users to drill down on a General Ledger query on student debtors transactions - finance iEnabler GL Query . |
Date | System Version | By Whom | Job | Description |
---|---|---|---|---|
06-Sep-2011 | v02.0.0.0 | Marchand Hildebrand | t177252 | Create manual. |
24-Oct-2012 | v02.0.0.1 | Marchand Hildebrand | t182828 | Add effective date when linking functions to groups |
21-Aug-2013 |
v03.0.0.0 |
Marchand Hildebrand |
t193036 |
Add processing rule on effectivedate and lov logic |
