Query Request Information {MISAPP-7}


This option allows the user to query previous request numbers. There are three main uses for this option.

  1. Firstly, to search for a particular previous request in terms of, for instance, the date on which it was generated or the user who generated it.
  2. Secondly, it is useful to query a certain program number (this corresponds to a "generate" menu option), and check which input parameters have already been used. The user can then check if the input parameters he/she intends to use to generate a new set of stored data has been used before, and so ensure that an important data set will not be overwritten.
  3. Thirdly, this option can be used to check which request was generated before a certain date so that vital information is not deleted in {MISAPP-8}.

Fields in the option:

Block 1:  Query Request Information

Field Type
&
Length		 Description
Request Number N9 This is the unique request number given in the output after generating a program.
Program number N4 This is a number to identify which generate program option the user selected.   The program numbers are (also given in a List of Values):

Program 1 Qualification Across Rating Bands {MISAPP-1}
Program 2 Qualification Across Preferences {MISAPP-2}
Program 3 Preferences Across Rating Bands {MISAPP-3}
Program 4 Entry Requirement Statistics - All {MISAPP-4}
Program 5 Entry Requirement Statistics - Excluding 4/5 {MISAPP-5}
Program 6 Entry Requirement Statistics - 4/5 {MISAPP-6}
Process Date DD-MON-YYYY The date on which the data was created using the generate program option.
Request detail 4 x A120 The request details given here include the program heading, input parameters and the date and time on which the
generate program was requested.

Example:

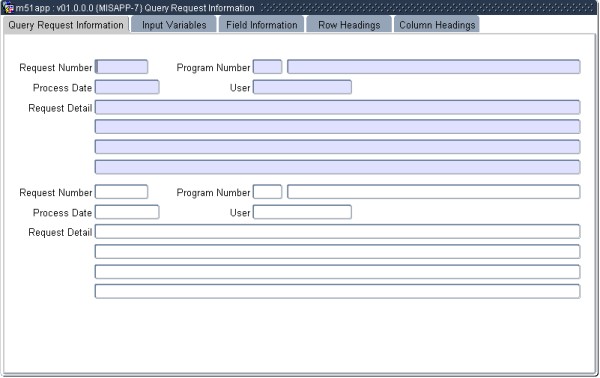

Example of misapp-7b1



Block 2:  Input Variables

Field Type
&
Length		 Description
Request Number N9 The request number.
Answer Number N3 The answer number and the answer description.

Example:

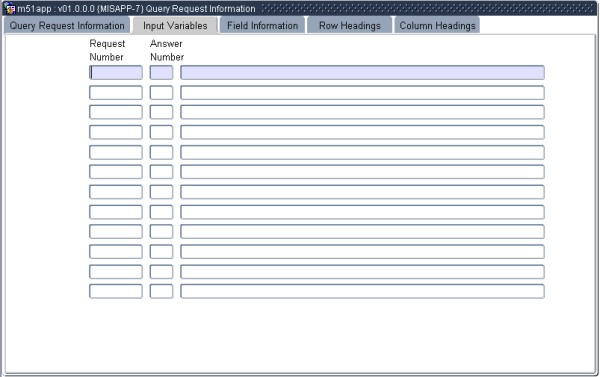

Example of misapp-7b2



Block 3:  Field Information

Field Type
&
Length		 Description
Request Number N9 The request number
Row Number N10 The row number
Column Number N6 The column number
Field N10 The field value.


Example:

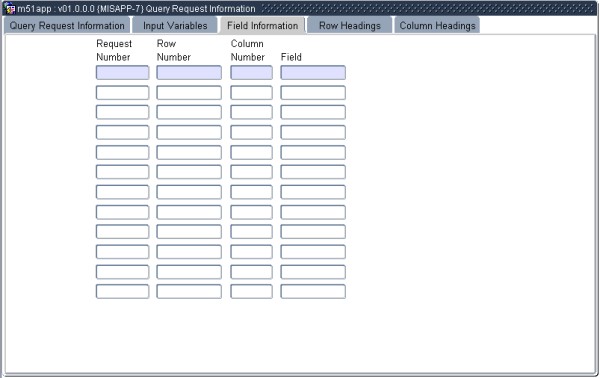

Example of misapp-7b3


Block 4:  Row Headings

Field Type
&
Length		 Description
Request Number N9 The request number.
Row Number N10 The row number.
Description A40 The column heading.


Example:

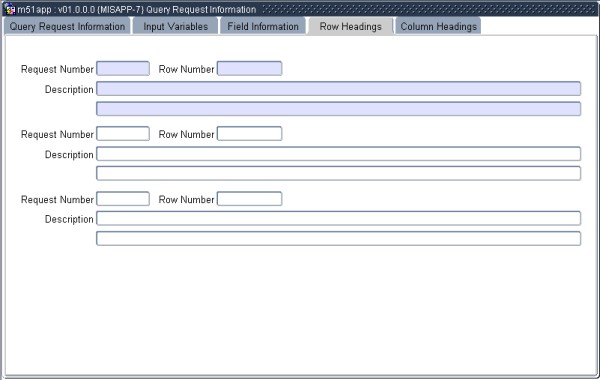

Example of misapp-7b4


Block 5:  Column Headings

Field Type
&
Length		 Description
Program Number N6 The program number.
Column Number N6 The column number
Detail 4 x A120 The request detail


Example:

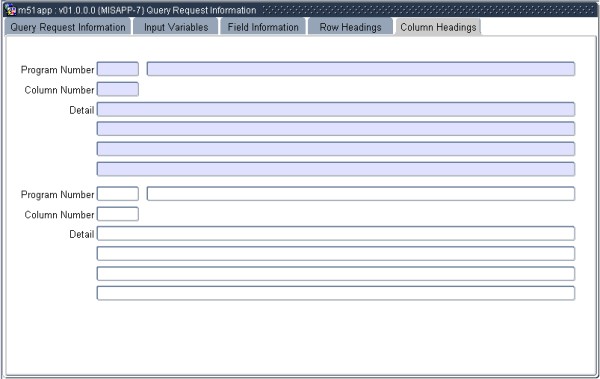

Example of misapp-7b5



Processing
Rules
  No special processing rules


See Also:



History Of Changes

Date System Version By Whom Job Description
29-Apr-2007 v01.0.0.0 Amanda Nell t135468 New manual format.
