Maintain Label Profiles


The profile set up must be linked on {GMNT-5} / {GMNT-14} , TAB - Document Groups, Field - Label Profile  Code, when a label is defined on Document Classification field.

  Panel Box 1:  Label Profiles


Field Type
&
Length		 Description
Code A8 Label Profile Code
This code will be used as Label Profile Code on {GMNT-5} / {GMNT-14}
Description A80 Label Profile Description
Active A1 Is this Record Active (Y/N)
All the active records will apear on the LOV on {GMNT-5} / {GMNT-14}
The inactive will not appear on {GMNT-5} / {GMNT-14}.
Labels Across N3 The Number of Labels to be printed across the page.
Label Width N4 The Label width in Millimeters.
Label Height N4 The Label height in Millimeters.

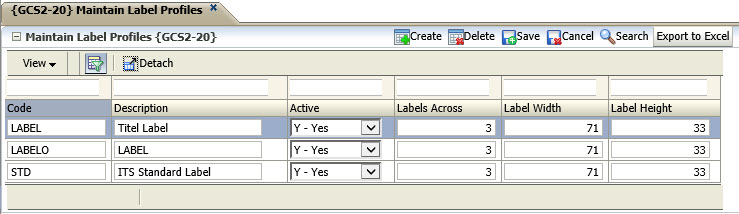

Example:

its_man_img/gcs2-20b1p1i1.jpg



Processing
Rules
  No special processing rules


See Also:



History of Changes

Date System Version By Whom Job Description
21-Jul-2008 v01.0.0.0 Amanda Nell t New manual format.
26-May-2014
 v03.0.0.0
 Sarah Seeletse
 F198938
 Link the correct image, put the fields description on block 1
22-Dec-2015
 v04.0.0.0
 Maud Gudlhuza
 t197103
 Changed image and Block to Panel Box
