The control unit is the server,
used by the company that does the physical access control, where the
access data is downloaded to and from the ITS system. Every
Security Control Unit must be known to the system. This option is used
to enter the information in respect of each unit.

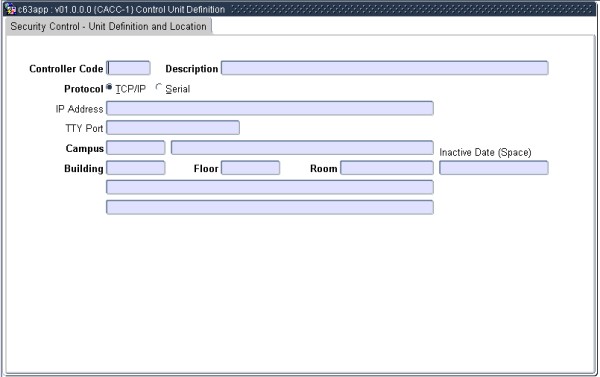

| Field | Type & Length |
Description |
|---|---|---|
| Controller Code | A4 | This field identifies the unit name. The name of the first control unit must be gcs, if the access control is done by the company General Control Systems. When the name of further control units are identified, or when access control is done by a third party, the name of the control unit must be clarified between the institution and the third party before this option is used. The name must be in the host file on the UNIX system and must have an IP number. |
| Description | A30 | The description of the controller unit. |
| TCP/IP or Serial | A1 | Define whether the unit is a (T)CP/IP or (S)erial unit |
| IP Address | A20 | Enter the IP Address if your selection was (T)CP/IP. |
| TTY Port | A12 | Enter the TTY port number if your selection was (S)erial. |
| Campus | N2 | Enter the campus on which this unit is situated. The system validates that it is a valid campus code as set up in {SPCS-1}, and displays the name. |
| Building | N4 | Enter the building in which this unit is situated. The system validates that it is a valid building code as set up in {SPCS-4}, and displays the name. |
| Floor | N2 | Enter the floor on which this unit is situated, in the
building as
defined in the previous field. The system validates that it is a valid
floor, from {SPOPS-1} and
displays the name. If a Date Inactive,
smaller than the System Date, is inserted into the Space Inventory on
{SPOPS-1}, the room may not be used. If the Date Inactive is
greater
than the System Date it will be displayed as part of the LOV on the
Floor/Room. |
| Room | A7 | Enter the room number in which this unit is situated. The system validates that it is a valid room number, from {SPOPS-1} and display the name. |
| Date Inactive | DD-MON-YYYY | The date on which the room becomes inactive will be displayed. |
|
| Processing Rules |
|
|---|---|
| No special processing rules. |
| Date | System Version | By Whom | Job | Description |
|---|---|---|---|---|
| 23-Oct-2006 | v01.0.0.0 | Amanda Nell | t134362 | New manual format. |
| 10-Mar-2008 | v01.0.0.0 | Vaughn Dumas | t134362 | System owner proof read |
| 18-Aug-2008 | v01.0.0.0 | Charlene van der Schyff | t151624 | Edit Language obtained from proof read language Juliet Gillies. |
