Define Annual Result Compute Rules {SSTUD4-30}

This option is used to define Annual Result Compute Rules (ARC).

Rule Codes starting with a ‘Z’ are ITS defined rules and are used as base (with all the parameters needed defined) to create rules applicable to an institution. These rules may not be deleted. Standard rules that are available are documented in Annual Result Calculation functions
Rule parameters cannot be added or removed because the procedures used by the rules need this information.
Rules can be set Active or Inactive
The description of an institution rule can be changed
Institutions may create institution specific rules, but the associated Local software Database Procedures must be developed by AdaptIT

The first 3 parameters of the rule are used to identify the current registration.

Field	Type & Length	Description
Block 1: Validation Rules
Rule Code	A4	A 'Rule Code' that will uniquely identify a progression stage rule.
Sequence	N3	Enter the sequence in which this validation must be performed.
Stop Quote	Y/N	Not used
Stop Admits	Y/N	Not used
Admit Status		Not used
Database Procedure	A30	Enter the name of the database procedure that will be used to execute the logic of this progression stage rules.
Active	A1	Enter a 'N' if the progression stage rule is no longer needed or the user wants to disable the stage rule temporarily. The progression program calls a function that will always validate only active stage rules.
Rule Code Description	A250	Enter the Rule description.
Error Message	A250	Not used
Student Message	A250	Not used
Block 2: Rule Parameters
Parameter No	N4	Enter the number of the parameter. This value does not necessarily denote the sequence in which the parameter is evaluated in the database procedure.
Description	A512	Enter a description for this prompt.
Table Reference	A40	Enter the ORACLE database table against which the prompt values must be validated (A40). This table is used in block 3 to determine if valid parameter values are used in the graduation application validation process. This value must exist in {DMAIN-1} and is installed with the AdaptIT system. We suggest that this data is inserted with the help of the systems administrator. The format of the data in this field must be of the format SCHEMA.TABLE e.g. STUD.IBQRSC
Column Reference	A20	Enter the ORACLE column in the ORACLE table against which the prompt values must be validated. This value must exist in {DMAIN-1} and is installed with the ITS system.
Description Column	A40	Enter the column in the table that contains the description for the column value referred to in the previous field
LOV SQL	A8	Enter the code of an additional SQL clause that will be included in the LOV.
Data Type	A1	Enter the data type of the parameter value that will be entered in the parameter value table. (N)umeric, (C)haracter, (D)ate. This is used as a second validation mechanism to ensure that the user enters the correct type of data for the parameter values in block 3.
Block 3: Parameter Values
Parameter Values	A30	Enter the 'Value' for this rule and parameter.

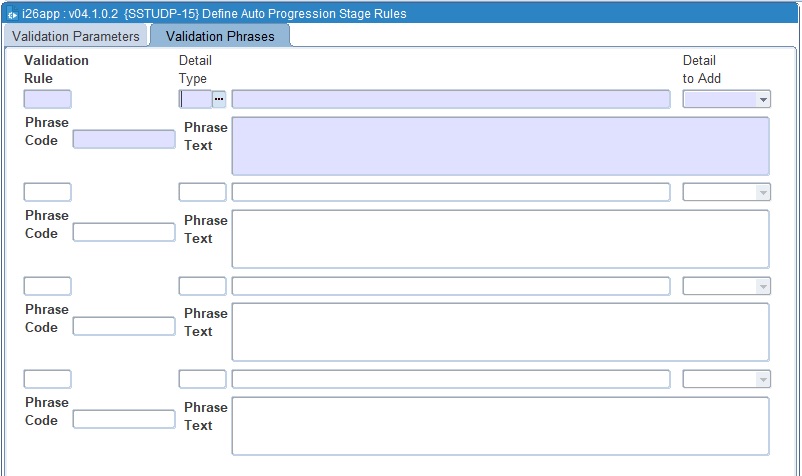

Example:

Field	Type & Length	Description
Validation Rule	A4	A List of Values is available with values from block 1.
Detail Type	A4	A LOV's is available with valid Detail Types.
Detail to Add	A1	Valid Values: V - Value L - List
Phrase Code	A10	A user defined 'Phrase Code'
Phrase Text	A40000	A user defined 'Phrase Text Description'.

Example:

Processing Rules
	No special processing rules.
