Validate For STATS {SPOPS-5}

This program may be used to validate the data in the Space System for Statistical reporting.

Based on the Input Parameter, it provides a list of all Buildings from {SPCS-4} that are linked to a Campus on {SPCS-1} that does not have any Room linked to it on {SPOPS-1}.

User Selection	Prompt Text ^{* an item between square brackets [ ] is the default answer}	Type & Length	Comments
1	Include Buildings Excluded from Statistical Reporting {STG6MN-1}	A1	(Y)es or [N]o
2	Validate Existence of Barcodes	A1	[Y]es or (N)o
3	Validate Existence of Buildings without a Room	A1	(Y)es or [N]o

Sort Order	Per	Comments
1	Building
2	Floor
3	Room Number

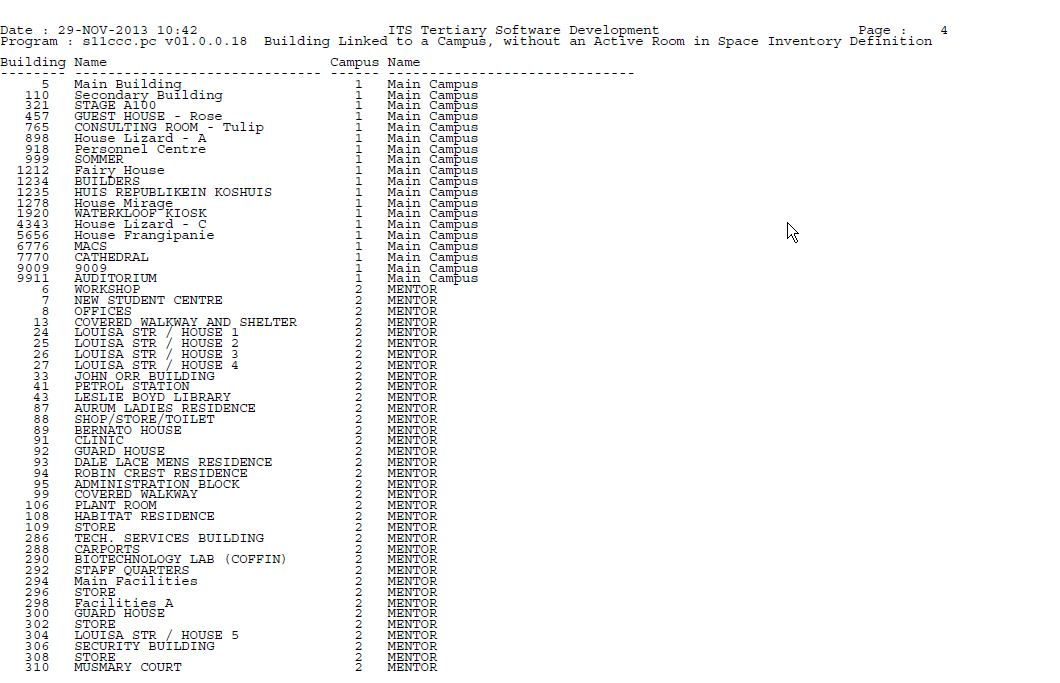

For list provided when Batch Prompt: Validate Existence of Buildings without a Room : 'Y'

Sort Order	Per	Comments
1	Campus Code
2	Building

System Select
1	Venues (spaces) validation in the Space Inventory {SPOPS-1} . Only Active Space for the Reporting Year with Categories related to Statistical Reporting. Space without an "Inactive Date" or the "Inactive Date" is after the end of the statistical Reporting Year. The statistical Reporting Year is as per the Control File {STMNT-1} - table sequence 6. Based on the Input Parameter, Buildings in {STG6MN-1} are (not) part of this validation.
3	All venues (spaces) in the Space Inventory {SPOPS-1} with data errors that may influence Statistical Reporting.

System Select

Venues (spaces) validation in the Space Inventory {SPOPS-1} .

Only Active Space for the Reporting Year with Categories related to Statistical Reporting.
Space without an "Inactive Date" or the "Inactive Date" is after the end of the statistical Reporting Year.
The statistical Reporting Year is as per the Control File {STMNT-1} - table sequence 6.
Based on the Input Parameter, Buildings in {STG6MN-1} are (not) part of this validation.

All venues (spaces) in the Space Inventory {SPOPS-1} with data errors that may influence Statistical Reporting.

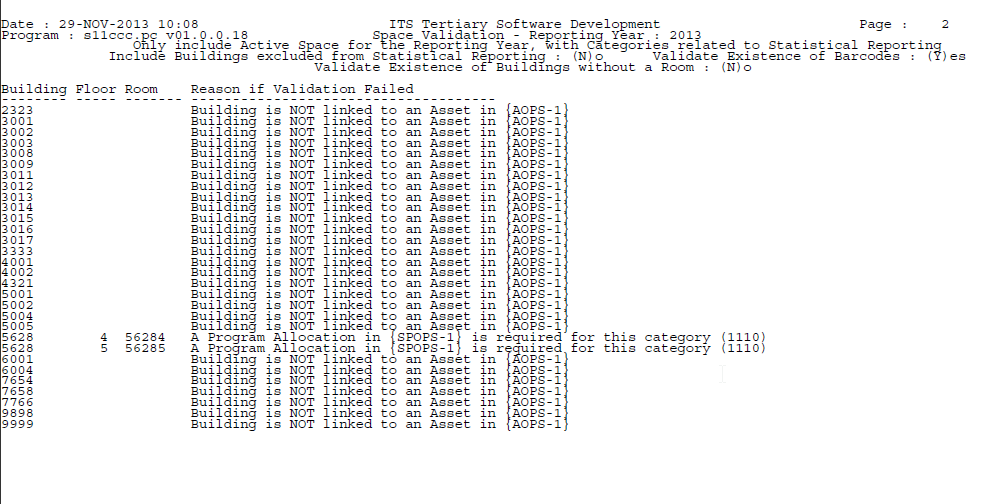

Example:

Processing Rules
The following validations are perfomed and venues with errors will be reported: Note: Space Entries read for the Reporting year Error: Buildings NOT linked to an Asset Error: Buildings linked to MULTIPLE Assets Error: Buildings NOT linked to Asset with Condition Code Error: Buildings NOT linked to Asset with Recognition Date Based on the Input Parameter: Error: No Barcode exists (used as ROOM in Hemis) Error: AREA is required (for ALL categories) Error: Category in range that requires STATIONS Category Range 1110 Classroom 1210 Class Laboratories 1220 Open Laboratories 1250 Research/Non-Class Laboratories 1310 Office 1410 Study Space 1430 Open-Stack Study Space 1910 Sleep/Study without Toilet/Bath 1920 Sleep/Study with Toilet/Bath 1950 Apartment 1970 House Error: Category in range that requires SCU to be Zero Category Range 1050, 1060 and 1070 Unclassified Facilities 2050, 2060 and 2070 Unclassified Facilities 2110, 2120 and 2130 Non-Assignable Enabling Areas Unclassified and Non-Assignable Areas may not have Allocations linked Warning: Department Allocation does not add up to 100% Error: Program Allocation required Category falls in range for Classified and Assignable Areas Error: Invalid Program Allocation for Space Refer to list of values in {SPOPS-1b4} Error: Program Allocation does not add up to 100% Error: PCS 1.1 does not add up to Program 110 The sum of PCS1.1 Allocations must equal the sum of Program Allocations for Formal Instruction (110) Error: PCS 1.1 required for Program 120, 130 and 200 When Non-Formal Instruction (120/130) or Research (200) is without Formal Instruction (110), PCS1.1 (subject) Allocations are still required Error: Space with Inactive Subjects Formal Instruction (110), Non-Formal Instruction (120/130) and Research (200) required Subjects that are active for the Statistical Year Error: No Space Cost Unit Calculated Although a Program Allocation exists

Processing Rules

The following validations are perfomed and venues with errors will be reported:

Note: Space Entries read for the Reporting year

Error: Buildings NOT linked to an Asset
Error: Buildings linked to MULTIPLE Assets
Error: Buildings NOT linked to Asset with Condition Code
Error: Buildings NOT linked to Asset with Recognition Date

Based on the Input Parameter:
Error: No Barcode exists (used as ROOM in Hemis)

Error: AREA is required (for ALL categories)

Error: Category in range that requires STATIONS
   Category Range
1110 Classroom
  1210 Class Laboratories
1220 Open Laboratories
1250 Research/Non-Class Laboratories
1310 Office
  1410 Study Space
1430 Open-Stack Study Space
  1910 Sleep/Study without Toilet/Bath
1920 Sleep/Study with Toilet/Bath
1950 Apartment
  1970 House

Error: Category in range that requires SCU to be Zero
Category Range
1050, 1060 and 1070 Unclassified Facilities
2050, 2060 and 2070 Unclassified Facilities
2110, 2120 and 2130 Non-Assignable Enabling Areas
  Unclassified and Non-Assignable Areas may not have Allocations linked

Warning: Department Allocation does not add up to 100%

Error: Program Allocation required
   Category falls in range for Classified and Assignable Areas

Error: Invalid Program Allocation for Space
       Refer to list of values in {SPOPS-1b4}

Error: Program Allocation does not add up to 100%

Error: PCS 1.1 does not add up to Program 110
   The sum of PCS1.1 Allocations must equal the sum of Program Allocations for Formal Instruction (110)

Error: PCS 1.1 required for Program 120, 130 and 200
   When Non-Formal Instruction (120/130) or Research (200) is without Formal Instruction (110), PCS1.1 (subject) Allocations are still required

Error: Space with Inactive Subjects
   Formal Instruction (110), Non-Formal Instruction (120/130) and Research (200) required Subjects that are active for the Statistical Year

Error: No Space Cost Unit Calculated
   Although a Program Allocation exists

Date	System Version	By Whom	Job	Description
29-May-2008	v01.0.0.0	Charlene van der Schyff	t145483	New manual format.
26-Aug-2008	v01.0.0.1	Frans Pelser	t146643	HEMIS Space Reporting
12-Mar-2009	v01.0.0.2	Ernie van den Berg	t156945	Add new report.
25-May-2009	v01.0.0.3	Charlene van der Schyff	t158347	Edit language obtained from proof read language Juliet Gillies.
13-Sep-2012	v01.0.0.4	Sister Legwabe	T185796	Removed and added new processing rules
27-Sep-2012	v01.0.0.4	Dinong Sereko	T185796	System owner proofread.
19-Mar-2013	v01.0.0.5	Su de Kock	T188270	Add the new Batch Prompts.
29-Nov-2013	v01.0.0.6	Su de Kock	T190136	1) Remove validation of compulsory Effective Building Year 2) Add the new Batch Prompts - optional report to list Buildings without Rooms.
