Valid Subject Group Combinations {SACAD-11}

Registration Subject Groups are defined on {SCODE3-2}. (This was previously the first block on {SACAD-11}).

This option may be used to set up a code structure of Subject Groups. Groups of subjects are defined and then subjects are linked to the specific groups. The application consists of three panel boxes as explained below.

Subject Groups are used in

The Student iEnabler Application / Registration where it works in conjunction with Validations {SMNT-1} "GA", "GB" and "GC".

It is not a requirement to set any rules.

The subjects will be generated according to the group set-up and students may then use the 'tick box' in front of the subject to select a subject for registration.

If rules are set, the applicant must pass these rules to continue with the application process.

Note that Compulsory subjects must not be included in any group as they will be in a pre-selected list if only one block / offering type / study period combination on the curriculum is available.

When a Subject Group is linked to the Academic Application {SNAPPA-3} of a Student through "Maintain Student Subject Groups {SNAPPAA-7}", the Subjects in the Group will be populated in the Planned Subjects of the Academic Application {SNAPPA-3} once the Student has been Admitted.

The set-up of the groups include

The sequence in which the groups must be displayed.
Minimum and maximum number of subjects that must / can be taken from any group.

This program is sensitive to User Restriction {SMNT-5} "SGRP - Restrict Subject Groups".

The data in the different panel boxes are dependent to each other.. Records cannot be created in panel box 2 if the corresponding record does not exist in panel box 1. Similarly, records cannot be created in panel box 3 without a corresponding record in panel box 2, however each panel box has a 'search' button where independent data can be search within each panel box. A pop up will display all the independent 'searched' data.

Fields in this option:

Panel Box 1: Qualification Group Link

This block is used to indicate which groups are valid for which qualification in a particular academic year.

Field	Type & Length	Description
Academic Year	YYYY	Enter the academic year for which the group / qualification code combination will be valid.
Group Code	A6	Enter the group code for this academic year.
Qualification	A6	Enter the qualification code that will be valid for this academic year and group.

Panel Box 2: Subject Group Rules

Field	Type & Length	Description
Year	N4	The Academic Year for which the group will be valid.
Qualification Code	A6	This is the qualification code to be used.
Offering Type	A1	Enter the Offering Type of the Qualification for which the Group will be valid for the academic year.
Group Code	A6	This is the group code to be used.
Study Period	A1	Enter the Study Period for the Qualification / Offering Type combination.
Minimum Subject	N3	Enter the minimum number of subjects allowed in the group.
Maximum Subject	N3	Enter the maximum number of subjects allowed in the group.
Sequence	N2	Enter the sequence in which the subjects must be displayed on the Web Registration.

Panel Box 3: Qualification and Subject Group Link

Field	Type & Length	Description
Year	N4	The Academic Year for which the group will be valid.
Qualification Code	A6	This is the qualification code to be used.
Offering Type	A2	Enter the Offering Type of the Qualification for which the Group will be valid for the academic year.
Study Period	A1	Enter the Study Period for the Qualification / Offering Type combination.
Subject	A7	Enter the subject code to be included with the group.
Group Code	A6	This is the group code to be used.

.

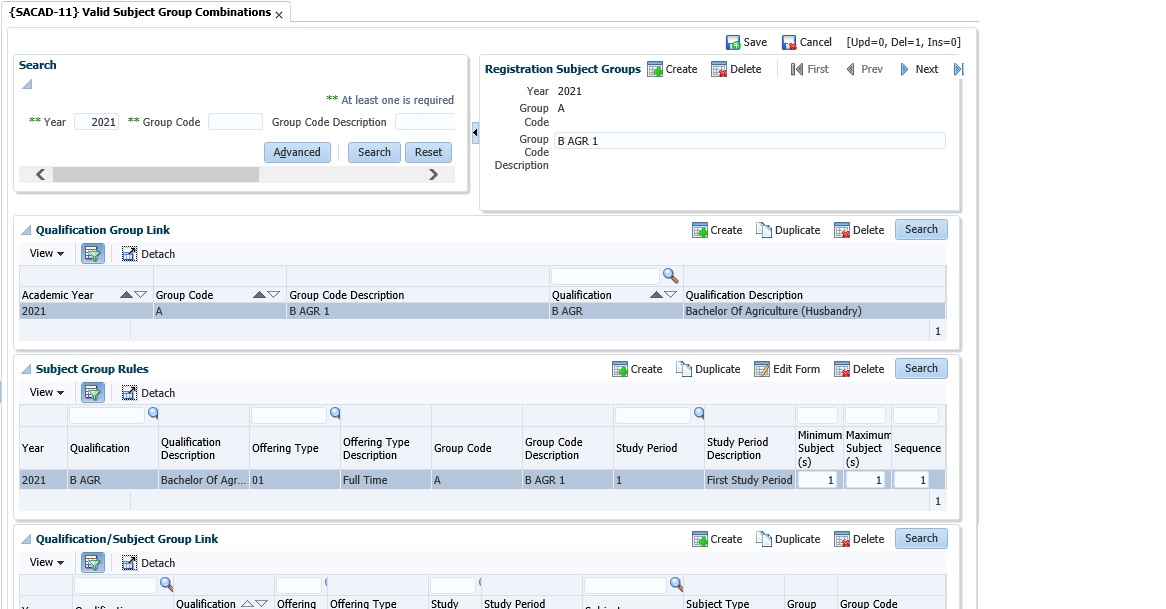

Example:

Processing Rules
1	The definition of qualification group's link is sensitive to the setup of the curriculum.

History of Changes

Date	System Version	By Whom	Job	Description
25-Jan-2007	v01.0.0.0	Amanda Nell	t133435	New manual format.
09-Mar-2007	v01.0.0.1	Phlip Pretorius	t140339	Add information for new block 2.
12-May-2008	v01.0.0.1	Magda van der Westhuizen	t149068	Insert new images.
17-Jun-2008	v01.0.0.1	Melanie Zeelie	t133435	Proofread.
2-Jul-2009	v01.0.0.2	Melanie Zeelie	t156225	Add additional processing rules
06-Jun-2013	v02.0.0.0	Amanda van Emmenis	t191452	Add information r.e. Subject Group Code, when linked to applicants.
02-Sep-2013	v03.0.0.0	Frans Pelser	f193479	Indicate where subject groups are used - from om_ienabler_code_valida.html
31-Oct-2016	v04.0.0.0	Magda van der Westhuizen	t213792	Convert manual to INT4.0.
14-Sep-2020	v04.1.0.0	Hellen Kgosi	T246033	When the user clicks on the {SCODE3-2} hyperlink, the manual for {SCODE2-3} is opened. Corrected that and put a new image.
13-Jan-2021	v04.1.0.1	Magda van der Westhuizen	T246635	Add 'Search' buttons on the different panel boxes to do an independent search.
