External Exam Extraction {SNZQAR-3}

Extraction of standard Information for External Exam / Reporting at NZQA.


The data is extracted into an XML format file according to NZQA specifications.

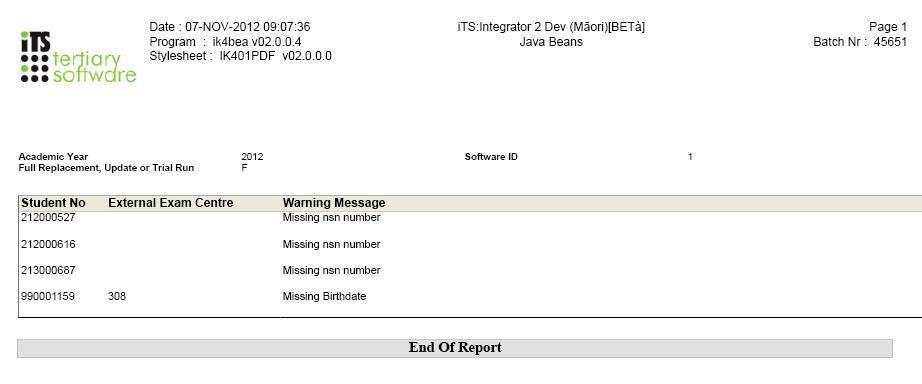

An additional PDF report is generated, listing some possible errors/warnings if any.



Process to follow to enable the use of this option:
Setup:
Setup System Operational Definitions on {SMNT-12}:
  • LC for subsystem DM - Learning Context Textual type
  • NR for subsystem DM - No NZQA Reporting Student Status
  • CU for subsystem DM - Catch-up Result Date (Format DD-MON-YYYY)
  • LP for subsystem DM - Learning Context Reporting Period
  • CR for subsystem DM - Default Competency Rubric
  • RD for subsystem DM - Updating Date when Updating results (For NZQA this should be set to 'Y'.)
Setup Conversion Codes on {GOPS-21} :

External Body
 External Code Type
 Internal Code
 Mnemonic
MOE
 STT
 Qualification Offering Type
 Qualification Student Type
NZQ
 SID
 (Institution) Code {GCS-1}
MOE
 ETH
 Ethnic code
MOE IWI IWI code
MOE CYL Period of Study
MOE RFL Cancellation reason
NZQ NRC Result

External body MOE, External code types INS and SID will be setup in {SNZQAR-9} and {SNZQAR-8}.
Setup context textual type with SOD LC for subsystem DM, in {SCODE3-8}.
Setup reporting period with SOD LP for subsystem DM, in {SCODE3-11}.
Setup context textual type per reporting period for standards with SODs LP - Learning Context Reporting Period and LC - Learning Context Textual type in {SCODE3-12}. Use Entity Indicator = 'S'.
Make sure NZQA School Setup is correct on {SNZQAR-8}.
Make sure NZQA Institution Setup is correct on {SNZQAR-9}.
Make sure External Exam Extraction Matrix is correct on {SNZQAR-10}.
Academic Setup must be complete, Curriculum Modules - {SACAD-10} is very important.
Rubric definitions in {SSTUD3-26} and setup of assessments in {SSTUD3-7} is very important.
  • There should always only be 1 assessment linked to an internal standard subject.
  • Internal standard subjects should not have 'Objective Evaluation' evaluation type on {SSTUD3-7b3}
Operational:
Normal registration activities, including changes and cancellations.
Identify Students who should not be reported/registered at NZQA by linking the status in SOD NR - No NZQA Reporting Student Status to the student  on {SREGL-2}.
Update context information for student, standard subject(s) combination where needed in {SREGB-12}.
Create 'External Exam Registration' service request for students with {SNZQAR-1}.
Update needed 'External Exam Registration' service request information (outcome, exam attendance and coded data fields) on {SSTUDS-3b3}.
Complete data for students who moved from another provider to Te Kura, and Te Kura must now report their standards to NZQA.
  1. Subject(s) must be registered
  2. Result(s) obtained must be recorded.
  3. Assessing provider must be entered in {SREGC-12}.


Fields in this option:

Block 1:  File Generation

Enter data and click the "Generate File" button to generate extraction/enties file.


Field Type
&
Length		 Description
Year YYYY  Academic Year
Software ID N3 Unique identifier for the Software System. A code is available on request from the NZQA.
Extraction Type A1 C / F / T / U
  • C - Full Replacement Trial - The report includes all students' subject(s) irrespective if the subject was previously included in an extraction but do not flag the students' subject(s) as being previously selected.
  • F - Full Replacement - The report includes all students' subject(s) irrespective if the subject was previously included in an extraction and flag the students' subject(s) as being previously selected.
  • Trail - The report includes all students' subject(s) marked to be included but do not flag the subject(s) as being previously selected
  • Update - The report includes all students' subject(s) marked to be included and flag the subject(s) as being previously selected
  • (See processing rules regarding "flag the record as being previously selected")
Remarks A2500 Any Remark on this generation
Generate File Button When this button is pressed the program will run and generate 2 output files that is described below.

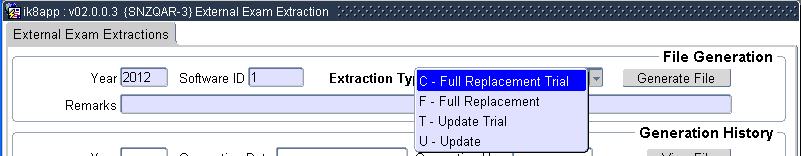

Example:

snzqar-3



Block 2:  Generation History

All the history for the UPDATE runs of the program will have an entry here.

The 'base' XML output can be viewed in {BATCH-14}.


Field Type
&
Length		 Description
Year YYYY Academic Year
Generation Date DD-MON-YYYY
HH24:MI		 Date that the file was generated
Generation User A8 User ID of the person that generated the file
Remarks A2500 Remarks that was entered when file was generated
  • For (NZQA) XML output: <batch request number>-XML- will be prefixed
  • For PDF output: <batch request number>-REP- will be prefixed
View File Button When this button is pressed the file that was generated on the Generation Date will display

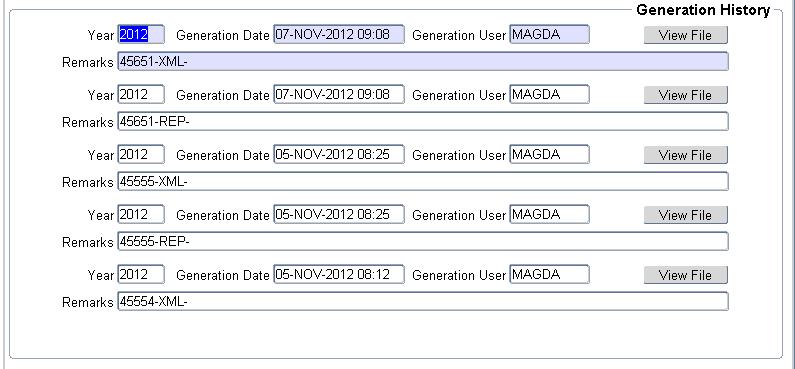

Example:

snzqar-3b2


Processing
Rules
 Include Students if: All students that are/were registered sometime during the year for a 'standard' subject ('Standard Type' field is not null in the Subject definition {SACADO-10}
(Some cancelled records are also included.)
and
There is a service request for the student for the year.
and
There is 'Entry Data' (see rules regarding entry data) for the student.
and
comply with the following inclusion rules:

Has Provider
 Student Data
 Check Include Flag
{SNZQAR-10}
 Always Include for Standards
{SNZQAR-8/9}
 Include Student
No
 n/a
 n/a
 n/a
 Yes
Yes
 No Match
 n/a
 n/a
 Yes
Yes
 Match
 N
 n/a
 Yes
Yes
 Match
 Y
 Y
 Yes
Yes
 Match
 Y
 N
 Exclude

(See rules regarding duplicate students)
Exclude Students if: Student have status SOD NR, subsystem DM.
Exclude Qualification: Where student cancelled and moved to another (known) school (see rules regarding move to another known school).

Where qualification was cancelled because of human error (cancelreason where 'Pass Full Financial Credit' = 'Y' on {SCODE-25}).
Entry Data For Full Replacement Trial and Full Replacement extraction run types the entry data is:
  1. External or Internal standard subjects to include
  2. Previous Years' internal standard subjects not yet reported
  3. Existing Financial assistance Data (see rules regarding financial assistance data) (regardless of any payment/request outcome).
For Trial and Update extraction run types the entry data is:
  1. Internal standard subjects to include
Financial Assistance Data Coded data fields:
  • 5 - Financial Assistance Type Code must be not null
  • 6 - Benefit / CSC Number
    • If Financial Assistance Type Code is 'B' - coded data field 6 - Benefit / CSC Number must be not null
  • 7 - Number of Students Count must be not null
  • 8 - Application Number must be not null
  • 9 - Student Amount Portion for Financial Assistance must be not null
Note: When a student qualify for inclusion in the run based on subjects to be reported / registered, this information will only be reported when the data complies to the above rules.

Include Standard Subjects Subject is a 'standard' subject when the "Standard Type" in the Subject definition {SACADO-10} is not null.
  1. 'External' standard subject - Evaluation Code for Subject {SACADO-10} is (E)xternal - only when the following is true:
    1. ONLY APPLICABLE TO Full Replacement Trial and Full Replacement extraction types.
    2. Service Request Outcome on {SSTUDS-3} is updated and leads to "Eligible outcome indicator" of 'Y' on {SSTUDS-2b2} and payment was received (Coded Data, field 18 -  Receipt Confirmation, = Y)
    3. "Will attend" is 'Y' on {SSTUDS-3} on the pop-up when the Outcome is updated
    4. (See rules regarding duplicate external standard subjects)
  2. 'Internal' Standard subject - Evaluation Code for Subject {SACADO-10} is (I)nternal - only when the following is true:
    1. Result of the subject is not NULL
    2. Result not verified.
    3. For Period of Study < 11:
      1. NZQA fees was paid (Coded data field 18 - Receipt Confirmation = 'Y' on {SSTUDS-3b3} for 'External Exam Registration service request created with {SNZQAR-1})
    4. Standards obtained in previous years, but not yet reported:
      1. ONLY APPLICABLE TO Full Replacement Trial and Full Replacement extraction types.
      2. Use Qualification Offering Type and Period of Study according to 'Include Previous Internal Results?' on {SNZQAR-10}:
        1. If Y:
          1. For Period of Study < 11, Only if the student did pay, include all internal standard subject(s) not yet reported.
          2. For Period of Study > 10, include all internal standard subject(s) not yet reported.
        2. If N - Only include internal standard subject(s) for this year
      3. (See rules regarding previous years' result date)
    5. When subject is not exempted (student did not achieve the standard at another institution who reported directly to NZQA), make sure the work submitted for evaluation was verified to be the student's own work. (Confirmed date must be the same or later than the Award date on {SNZQAR-22}. SOD CC for subsystem SR - Complete Subject without Confirmation, on {SMNT-12}, is relevant.)
    6. ONLY APPLICABLE TO Trial and Update extraction types: Transfer date must be equal to SOD CU for subsystem DM - Catch-up Result Date. Setting of Transfer date for catch-up run is done in {SNZQAR-14}.
    7. (See rules regarding duplicate internal standard subjects)
    8. (See rules regarding catch-up result date)
Exclude Subjects Subject was cancelled because of human error (cancelreason where 'Pass Full Financial Credit' = 'Y' on {SCODE-25}).
Previous Years' Result Date Internal standard subjects' results from previous years:
  • will be reported as 01-JAN-<current year>
  • Main subjects of standards reported from previous years should not be reported in the <SecondaryCourses> segment.
Catch-up Result Date Date results obtained reported in a catch-up run:
  • Results obtained in same year: report result date as is.
  • Result obtained in next year: report as SOD CU for subsystem DM - Catch-up Result Date.
Duplicate Students Only report data from the primary qualification of the latest year in the <EnrolmentDetails> segment.
All qualifing standards, for all qualifications, will be reported in the <NCEAEntries> segment.
Duplicate External Standard Subjects When a student is registered again for the same external standard subject in the same year and the 'old' registration's attendance flag is set to 'Y', make sure only the new registration will be picked up by setting its attendance flag to 'Y' in {SSTUDS-3}.
Duplicate Internal Standard Subjects
  • Report highest pass result for a standard code (Standard Code for subject in the Subject definition {SACADO-10}), irrespective of version and provider
  • When there are only fail results for a standard code: report the result with the latest date for the highest version, give prefference to provider = Te Kura (code=498).
  • When there are more than 1 highest pass result for a standard code: report the result with the first date for the highest version, give prefference to provider = Te Kura (code=498).

(See rules regarding internal standard subject results).
Internal Standard Subject Results The highest and lowest result will be determined by the rubric linked to the assessment of the subject in {SSTUD3-7b3}.
The result linked to the highest sequence of the rubric in {SSTUD3-26} will be the highest result.
Coded Data Fields Reported Financial Assistance Fields 5-9:
When a student qualify for inclusion in the run based on subjects to be reported / registered, this information will only be reported when the data complies to the above rules regarding Financial Assistance data.
Coded data fields 10-17:
Can only be reported when field 18 - Receipt Confirmation, is 'Y'.
Move to another known school Cancellation reason = 'Transfered to another school ' ({GOPS-21}, External Body = 'MOE', External Code Type = 'RFL', Internal Code = cancellation reason and External Code = 'S')
and
Moving Provider detail (type and code) is entered.
Flag the record as being previously selected The subject record of the result reported will be flagged with the date that the extraction was run.
This date is visible on {SNZQAR-22b1} 'Transfer date'.

Lookup the context information (if it still exists) for the standard subject according to SOD LC, subsystem DM.

'Empty/null' not required elements will not be included in the XML output.

The date field format is ccyy-mm-dd with leading zeros.

The true/false elements' format is lower case.


Report - layout: P = Entry and Student data

Segment Field Description Type Length  Notes

DataExtractionDateTime Date Time 19 Date and time the file was created
Example:  2011-05-23T13:20:00
Mandatory field

AcademicYear YYYY 4 Academic Year {SACADO-17}, (iakcyr) = {SDREGA-1}, (iagcyr).
SMSSoftware (Start, Mandatory)



SoftwareID N 3 Unique identifier for an SMS
Mandatory field

SoftwareVersionNumber A 60 Identifies the SMS software version number used to generate the file
SMSSoftware (End)


ReportingProvider (Start, Mandatory)

Institution running the report

ProviderNumber N 4 Required field.
Value = {GOPS-21} Body/Type NZQ/SID, External code with Internal code = {GCS-1} Code (gaocode).

ProviderLocationNumber

Hardcoded: 1
ReportingProvider (End)


SecondaryCourses (Start)

Distinct list of all main subjects of standards reported as entries.
Segment will be empty when no students or no standards are reported.

FileTypeCode A 3 Course Endorsement file type
Must be 'FR' (Full Replacement) or UP (Update).
Mandatory field
SecondaryCourse (Start, Zero or more repetitions)



SecondaryCourseNumber A 10 A unique number that identifies a secondary course (iahsubj), {SDREGA-1}
Optional but must be supplied if Secondary Course Name is supplied.
This is the Main Subject of the Standard Tree.

SecondaryCourseName A 60 Description of course.
Optional but must be supplied if Secondary Course Number is supplied. (ialdesc) {SACADO-10}

ShortCourseIndicator

 A 5 Subject Endorsable Indicator {SACAD-10}
If subject endorsable = 'Y' then <ShortCourseIndicator> = false
If subject endorsable = 'N' then <ShortCourseIndicator> = true
if subject endorsable = null then do not include <ShortCourseIndicator> in the entries file.
SecondaryCourse (End)


SecondaryCourses (End)


LearnerEnrolments (Start)

Distinct list of all students reported.
Segment will be empty when no students are reported.

FileTypeCode A 3 Course Endorsement file type
Must be 'FR' (Full Replacement) or UP (Update).
Mandatory field
LearnerEnrolment (Start, Zero or more repetitions)


LearnerDetails (Start)



NationalStudentNumber A 10 Required field, value = {SREGB-1} Student Number (iadstno)
LearnerName (Start)



FirstName A 60 Required field, value = {SREGB-1} First Names (iadnames) from beginning to first space

MiddleName A 30 Not Required field, value = {SREGB-1} First Names (iadnames) from first space to next space

MiddleName A 30 Not Required field, value = {SREGB-1} First Names (iadnames) from second space to the end

LastName A 60 Required field, value = {SREGB-1} Surname (iadsurn)
LearnerName (End)



GenderCode A 1 Required field, value = {SREGB-1} Gender (iadsex)

BirthDate Date
 10 Required field, value = {SREGB-1} Birth Date (t) format DD/MM/YYYY

LocalIdentifier A 10 Required field, School's own unique student id, example"  ABC4880

EthnicityCode N 5 Required field.

Value = {GOPS-21} Body/Type MOE/ETH, Internal Code = {SREGB-1} Ethnic Group  1 (iadethn)

EthnicityCode N 5 Not Required field.

Value = {GOPS-21} Body/Type MOE/ETH, External  Code with Internal Code = {SREGB-1} Ethnic Group  2 (iadethn2)

EthnicityCode N 5 Not Required field.

Value = {GOPS-21} Body/Type MOE/ETH, External Code with Internal Code = {SREGB-1} Ethnic Group  3 (iadethn3)

IwiCode N 4 Required field.

Value = {GOPS-21} Body/Type MOE/IWI, External Code with Internal Code = {SREGB-1} IWI Code  1 (iadiwi1)

IwiCode N 4 Not Required field.

Value = {GOPS-21} Body/Type MOE/IWI, External Code with Internal Code = {SREGB-1} IWI Code  2 (iadiwi2)

IwiCode N 4 Not Required field.

Value = {GOPS-21} Body/Type MOE/IWI, External Code with Internal Code = {SREGB-1} IWI Code  3 (iadiwi3)

CitizenCountryCode A 3 Required field.

Value = {GOPS-21} Body/Type NZQ/CIT, External Code with Internal Code = {SREGB-1} Citizenship 1 (iadcitz)
Address (Start)



AddressLineText A 40 Required field, value = {SREGB-1} First Line of Primary Postal Address

AddressLineText A 40 Required field, value = {SREGB-1} Second Line of Primary Postal Address - Roll Data up e.g. from line 3 into line 2 where line 2 is empty and line 3 is not empty and so on. Display the postal code in the next available/empty address line and where all four lines are populated concatenate it to the line 4.

AddressLineText A 40 Not Required field, value = {SREGB-1} Second Line of Primary Postal Address - Roll Data up e.g. from line 3 into line 2 where line 2 is empty and line 3 is not empty and so on. Display the postal code in the next available/empty address line and where all four lines are populated concatenate it to the line 4.

AddressLineText A 40 Not Required field, value = {SREGB-1} Second Line of Primary Postal Address - Roll Data up e.g. from line 3 into line 2 where line 2 is empty and line 3 is not empty and so on. Display the postal code in the next available/empty address line and where all four lines are populated concatenate it to the line 4.

PostCode N 4 Students Address Postal Code = {SREGB-1}.
Optional
Address (End)


LearnerDetails (End)


EnrolmentDetails (Start)

Data from the student's primary qualification of the latest year

EnrolmentDate Date 10 Date student enrolled at this school = {SDREGA-1} (iagsdate).
Mandatory field.

WithdrawnIndicator

Indicates that the student has withdraw from all assessments {SREGC-3}, (iagcancreason, iagcancdate).
Because we are not reporting standards for students who moved to other schools, the only time when the withdrawnflag will be Y will be when a student moved to another institution.

StudentTypeCode A 6 Required field.
Value = {GOPS-21} Body/Type MOE/SST, External Code with Mnemonic = Qualification Registration Student Type (iagstudtype) and Internal Code = Qualification Registration Offering type (iagot)

FundingYearLevelCode N 2 Required field.

Value = {GOPS-21} Body/Type MOE/CYL, Internal Code with External Code = Qualification Registration Study Period (iagperstudy).

TertiaryReleaseIndicator A 5 Not Required field.
If  Field 18 on Tab 'Coded Data' of {SSTUDS-3} for student and Service Code on SOD 'AA' for subsystem SR, on {SMNT-12} :
N - value is null
Y - value = Field 17; A blank value will translate to Y.

StudentSortCode

Not Required field, value = NULL.

PaymentAmount N 8 Not Required field, value = Field 10 on Tab 'Coded Data' of {SSTUDS-3} for student and Service Code on SOD 'AA' for subsystem SR, on {SMNT-12}
Leaving Details (Start)

This information will only be populated when:
  1. student moved to another institution
  2. student cancel but did not move to another school/institution

LeavingDate Date 10 Date student departed this School {SREGC-3}, (iagcancdate}.  Optional but Mandatory if the Leaving Code is not blank.

LeavingCode A 1 Reason student departed this School, {SREGC-3}, (iagcancreason).  Optional but mandatory if Leaving Date is not blank.
Leaving Details (End)


ExamCentre (Start)

Use coded data fields 14 - Exam Centre Type and 15 - Exam centre Provider number  from Tab 'Coded Data' of {SSTUDS-3} for student and Service Code on SOD 'AA' for subsystem SR, on {SMNT-12}.

(ExamCentreDetails)
ProviderNumber		 N 5 Correspondence School and Westmount use only

ProviderLocationNumber

Mandatory if Provider number is given.

  • If  type = I, get the Provider Location from Mnemonic where the Provider Number = 'Internal Code' and the 'External Code' = MoE and the 'External Code Type' = INS.
  • If type = S, get the Provider Location from Mnemonic where the Provider Number = 'Internal Code' and the External Code' = MoE and the External Code Type = SID.
ExamCentre (End)


FinancialAssistanceDetails (Start)

Use coded data fields 5 to 8 from Tab 'Coded Data' of {SSTUDS-3} for student and Service Code on SOD 'AA' for subsystem SR, on {SMNT-12}.
This information will only be reported when the data complies to the above processing rules regarding Financial Assistance Detail.

FinancialAssistanceTypeCode A 1 Financial Assistance Type
Values = Field 5 - Financial Assistance Type Code:
B = Benefit
I = Inc, Internal Code = Qualification Registration Offering type (iagot)
F = Family
Optional field.

CommunityServicesCardNumber A 15 Mandatory if Assistance type = 'B'.
Value = Field 6 - Benefit / CSC Number

ApplicationNumber A 15 Required field if Assistance Type is not NULL.
Value = Field 8 - Application Number.

NumberofStudentsCount N 2 Required field if Assistance Type is not NULL.
Value = Field 7 - Number of Students Count
FinancialAssistanceDetails (End)


EnrolmentDetails (End)


NCEAEntries (Start, Zero or more repetitions )

Distinct list of standards to report.
Check Processing rules regarding duplicates.
Segment will be empty when there are no standards to report for the student.
Entry (Start)


Standard (Start)



StandardNumber N 5 Required field, value = {SACADO-10} Standard Code (ialnzqacode)

StandardVersionNumber N 2 Required field, value = {SACADO-10} Standard Version (ialstdver)

ContextCode N 2 Not Required field, value = NULL (need information from client)
Standard (End)



SecondaryCourseNumber A 3 A unique identifier that links a standard to a subject for a student (SACAD-18} =  (jqtstdnum), {SACADO-10} = (ialnzqacode).

TeReoPaperIndicator A 5 Request for a translated exam paper.  Only valid for external standard subjects, Evaluation Code for subject on {SACAD-14} is (E)xternal.
Values:  1,0, True or False

TeReoAnswerIndicator A 5 Indicates the student will submit work.  Applies to both external and internal standard subjects.
Values:  1,0, True or False

WithdrawnIndicator A 5 Indicates Student has withdrawn from assessment in this entry.  {SREGC-4} = (iahcancreason / iahcanceldate).
Values:  1,0, True or False
Because we are not reporting standards for students who moved to other schools, the only time when the withdrawnflag will be Y will be when a student moved to another institution.
SecondaryResult (Start)



CompletionDate Date 10 Required field if previous field is not NULL, value = {SSTUDY-21} Result Date (iaheresdate)

SecondaryResultCode A 5 Assessed result for internal standard subject {SCODE-23}.  Achievement Standards = A, M, E, N and V.
Unit Standards = A, N, V or M (M only if indicated as allowed on Standards file.
Optional but must be supplied if completed date is supplied.
SecondaryResult (End)


AssessingProvider (Start)

Linked to the subject.
{SREGC-12}, {SDREGA-3} or {SSTUDY-36} - multi view or single view.

ProviderNumber N 5 MoE Provider Number, example:  .498.
Mandatory where standard is assessed by another provider.

ProviderLocationNumber N 2 Provider location code, value:  01 thru 99.
Mandatory where standard is assessed by another provider.
AssessingProvider (End)


Entry (End)


NCEAEntries (End)


LearnerEnrolment (End)


LearnerEnrolments (End)



LearnerRowCount N 6 A count of learner records, example:  775.
Mandatory

EntryRowCount N 6 A count of Standard records, example: 7550
ReportingPerson (Start)



FullName A 255 Full name of person submitting file to NZQA.  Appended to file when file submitted to NZQA.  Must be filled in once the file is uploaded.

EmailEAddress A 255 E-mail address of person submitting file to NZQA.  Appended to file when file submitted to NZQA.  Must be filled in once the file is uploaded.
ReportingPerson (End)



CommentText A 255 Comments supplied for this file for the Data Group.  Appended to file when file submitted to NZQA.  Optional but if needed must be filled in once the file is uploaded.


Example: XML Output (NZQA Format)
.
<SecondaryEnrolment xmlns="urn:nzl:govt:educating:draft:nzqa:enrolments:xsd:SecondaryEnrolments-8"xmlns:tbd="urn:nzl:govt:educating:draft:tertiary:schema:xsd:TertiaryBaseDataTypes-3"xmlns:cnc="urn:nzl:govt:educating:draft:nzqa:schema:xsd:CommonNZQAComponents-4"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="urn:nzl:govt:educating:draft:nzqa:enrolments:xsd:SecondaryEnrolments-8 http://www.nzqa.govt.nz/schemas/batch/SecondaryEnrolments-8.0.xsd urn:nzl:govt:educating:draft:nzqa:schema:xsd:CommonNZQAComponents-4 http://www.nzqa.govt.nz/schemas/batch/CommonNZQAComponents-4.0.xsd urn:nzl:govt:educating:draft:tertiary:schema:xsd:TertiaryBaseDataTypes-3 http://www.nzqa.govt.nz/schemas/batch/TertiaryEducationBaseDataTypes-3.0.xsd">
<DataExtractionDateTime>2013-02-05T12:15:03</DataExtractionDateTime>
<cnc:AcademicYear>2012</cnc:AcademicYear>
<SMSSoftware>
<cnc:SoftwareID>1</cnc:SoftwareID>
<cnc:SoftwareVersionNumber>INT2.0</cnc:SoftwareVersionNumber>
</SMSSoftware>
<ReportingProvider>
<tbd:ProviderNumber>999</tbd:ProviderNumber>
<cnc:ProviderLocationNumber>01</cnc:ProviderLocationNumber>
</ReportingProvider>
<SecondaryCourses cnc:FileTypeCode="FR">
<SecondaryCourse>
<cnc:SecondaryCourseNumber>1000000</cnc:SecondaryCourseNumber>
<SecondaryCourseName>MICRO COMPUTER ?</SecondaryCourseName>
</SecondaryCourse>
</SecondaryCourses>
<LearnerEnrolments cnc:FileTypeCode="FR">
<LearnerEnrolment>
<LearnerDetails>
<tbd:NationalStudentNumber/>
<GenderCode>M</GenderCode>
<tbd:BirthDate>1997-01-01</tbd:BirthDate>
<LocalIdentifier>212000527</LocalIdentifier>
<CitizenshipCountryCode>2</CitizenshipCountryCode>
<Address>
<AddressLineText>Posbus 6578</AddressLineText>
<AddressLineText>SUNRIDGE PARK</AddressLineText>
<PostCode>6045</PostCode>
</Address>
</LearnerDetails>
<EnrolmentDetails>
<EnrolmentDate>2011-01-01</EnrolmentDate>
<WithdrawnIndicator>false</WithdrawnIndicator>
<StudentTypeCode>SF</StudentTypeCode>
<FundingYearLevelCode>1</FundingYearLevelCode>
<TertiaryReleaseIndicator>true</TertiaryReleaseIndicator>
<StudentSortCode>01</StudentSortCode>
<PaymentAmount>0.00</PaymentAmount>
</EnrolmentDetails>
<NCEAEntries>
<Entry>
<Standard>
<StandardNumber>2977</StandardNumber>
<StandardVersionNumber>4</StandardVersionNumber>
</Standard>
<cnc:SecondaryCourseNumber/>
<TeReoPaperIndicator>false</TeReoPaperIndicator>
<TeReoAnswerIndicator>false</TeReoAnswerIndicator>
<WithdrawnIndicator>false</WithdrawnIndicator>
<SecondaryResult>
<CompletedDate>2012-01-01</CompletedDate>
<SecondaryResultCode>12</SecondaryResultCode>
</SecondaryResult>
</Entry>
</NCEAEntries>
</LearnerEnrolment>
<LearnerEnrolment>
<LearnerDetails>
<tbd:NationalStudentNumber/>
<LearnerName>
<FirstName>Danie</FirstName>
<LastName>Joubert</LastName>
</LearnerName>
<GenderCode>M</GenderCode>
<tbd:BirthDate>1999-01-01</tbd:BirthDate>
<LocalIdentifier>212000616</LocalIdentifier>
<CitizenshipCountryCode>2</CitizenshipCountryCode>
<Address>
<AddressLineText>posbus 53676</AddressLineText>
<AddressLineText>NAPIERVILLE,Pietermaritzburg</AddressLineText>
<PostCode>3201</PostCode>
</Address>
</LearnerDetails>
<EnrolmentDetails>
<EnrolmentDate>2012-01-01</EnrolmentDate>
<WithdrawnIndicator>false</WithdrawnIndicator>
<StudentTypeCode>SF</StudentTypeCode>
<FundingYearLevelCode>1</FundingYearLevelCode>
<TertiaryReleaseIndicator>true</TertiaryReleaseIndicator>
<StudentSortCode>01</StudentSortCode>
<PaymentAmount>110.00</PaymentAmount>
</EnrolmentDetails>
<NCEAEntries>
<Entry>
<Standard>
<StandardNumber>2977</StandardNumber>
<StandardVersionNumber>4</StandardVersionNumber>
</Standard>
<cnc:SecondaryCourseNumber>1000000</cnc:SecondaryCourseNumber>
<TeReoPaperIndicator>false</TeReoPaperIndicator>
<TeReoAnswerIndicator>false</TeReoAnswerIndicator>
<WithdrawnIndicator>false</WithdrawnIndicator>
<SecondaryResult>
<CompletedDate>2012-01-01</CompletedDate>
<SecondaryResultCode>12</SecondaryResultCode>
</SecondaryResult>
</Entry>
</NCEAEntries>
</LearnerEnrolment>
<LearnerEnrolment>
<LearnerDetails>
<tbd:NationalStudentNumber/>
<GenderCode>M</GenderCode>
<tbd:BirthDate>1992-10-20</tbd:BirthDate>
<LocalIdentifier>213000687</LocalIdentifier>
<CitizenshipCountryCode>2</CitizenshipCountryCode>
<Address>
<AddressLineText>posbus 56782</AddressLineText>
<AddressLineText>ADDO</AddressLineText>
<PostCode>6105</PostCode>
</Address>
</LearnerDetails>
<EnrolmentDetails>
<EnrolmentDate>2012-01-01</EnrolmentDate>
<WithdrawnIndicator>false</WithdrawnIndicator>
<StudentTypeCode>SF</StudentTypeCode>
<FundingYearLevelCode>1</FundingYearLevelCode>
<TertiaryReleaseIndicator>true</TertiaryReleaseIndicator>
<StudentSortCode>01</StudentSortCode>
<PaymentAmount>0.00</PaymentAmount>
</EnrolmentDetails>
<NCEAEntries>
<Entry>
<Standard>
<StandardNumber>8380</StandardNumber>
<StandardVersionNumber>3</StandardVersionNumber>
</Standard>
<cnc:SecondaryCourseNumber>1000000</cnc:SecondaryCourseNumber>
<TeReoPaperIndicator>false</TeReoPaperIndicator>
<TeReoAnswerIndicator>false</TeReoAnswerIndicator>
<WithdrawnIndicator>false</WithdrawnIndicator>
<SecondaryResult>
<CompletedDate>2012-01-01</CompletedDate>
<SecondaryResultCode>Q2</SecondaryResultCode>
</SecondaryResult>
</Entry>
</NCEAEntries>
</LearnerEnrolment>
</LearnerEnrolments>
<LearnerRowCount>3</LearnerRowCount>
<EntryRowCount>1</EntryRowCount>
</SecondaryEnrolment>

.

Example: PDF Output

Financial Assistance Fields 5-9: When a student qualify for inclusion in the run based on subjects to be reported / registered, this information will only be reported when the data complies to the above rules regarding Financial Assistance data.
Coded data fields 10-17: Can only be reported when field 18 - Receipt Confirmation, is 'Y'.snzqar-3r1i2



Processing
Rules

Use school / institution information {SNZQAR-8} / {SNZQAR-9} regarding approved exam centres to check for valid exam centres and report warning in PDF output.

Check for missing NSN number or Birthdate for the student and report warning in PDF output.


See Also:
History of Changes

Date System Version By Whom Job Description
15-Feb-2011 v02.0.0.0 Bea Swart T161194 New manual.
18-Nov-2011 v02.0.0.1 Magda vd Schyff F178415 173838:  Extraction Type, XML Output,  Date format
19-Oct-2011 v02.0.0.2 Magda van der Westhuizen T179936 New XML layout / fields.
31-Jan-2012 v02.0.0.3 Phlip Pretorius T178415 Correct reference to fixed length file
21-May-2012 v02.0.0.4 Bea Swart T181113 Change manual with new fixed data for NZQA T178250
11-Dec-2012 v02.0.0.5 Magda van der Schyff T182256 Update manual
26-Jan-2019
 v04.1.0.0
 Frans Pelser
 T237245
 Update Academic Structure references
