Details of Registration / Results of a Student {SSTUDY-21}

This option allows for on-line queries on student records, and has been designed as a powerful and flexible facility to run a variety of queries.


Extracting information from the student record system.

For a more in detail explanation of the new functionalities refer to the Operational Manual {main-om}.

This option contains the following workareas (panel boxes):
This is normally a 'query only' taskflow but if the users have update priviliges on single menu options e.g. 'Disabilities' - {SREGB-10} the user will be able to do updates on this taskflow.

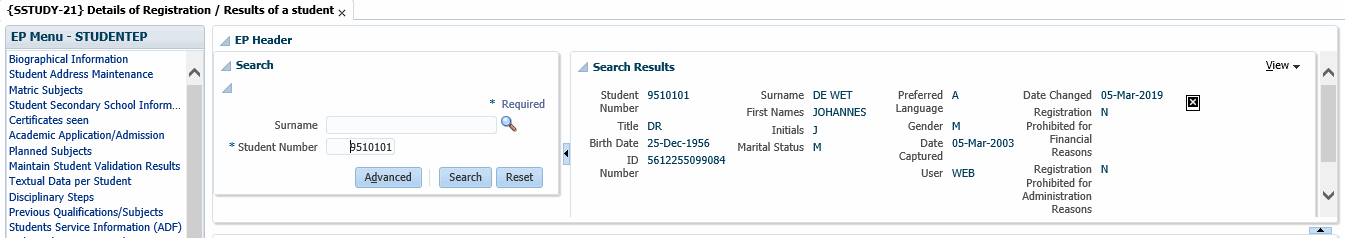

Example:

Example of sstudy-21b1



1.    Search Panel box:

Field Type
&
Length
Description
Search on Surname     The title, initials and surname of the student are displayed.  For further detail on this field, see Biographical Information {SREGB-1}.
Student Number     User to insert a relevant student number and 'click' on the search button will display the students biographical record.  When the user 'click' on the 'Reset' button it will clear the data in the 'Search' panel box..

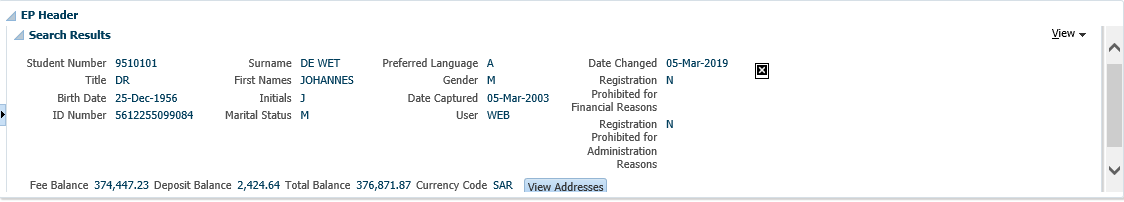

2.    Search Results Panel box:

View  Button

Statuses are linked to the student on either {FSAO-12}, {FBLO-14}, {SREGL-2} and {STWEBM-9}.

Indication if a student has statuses linked:

  • If a student is linked to a status that do not needs to be acknowledged a 'blue icon' will be displayed next to the Student's name.
  • If a student is linked to at least one or more statuses that needs to be acknowledged a 'yellow triangle' will be displayed next to the Student's name.  These statuses needs to be acknowledged before the students can exit..

When validation AV / SM {SMNT-1} is set to 'Y':

  • all the status codes from different systems that has been linked to a student will be displayed.
When validation AV / SM {SMNT-1} is set to 'N':
  • only the status codes linked to the relevant program in {SCODE1-2} will be displayed.
Refer to Override of Student Statuses for more information.

Example:

Example of ...








 For 'Student Number' up to the 'Date Changed' fields the data will be displayed from {SREGB-1}.

Field Type
&
Length
Description
Student Number N9 Data will be displayed from {SREGB-1}.
Title A5 Data will be displayed from {SREGB-1}.
Birth Date DD-MON-YYYY Data will be displayed from {SREGB-1}.
ID Number  A13 Data will be displayed from {SREGB-1}.
Surname A30 Data will be displayed from {SREGB-1}.
First Names A40 Data will be displayed from {SREGB-1}.
Initials A6 Data will be displayed from {SREGB-1}.
Marital Status
A1  Data will be displayed from {SREGB-1}.
Preferred Language A1 Data will be displayed from {SREGB-1}.
Gender  A1 Data will be displayed from {SREGB-1}.
Date Captured DD-MON-YYYY Data will be displayed from {SREGB-1}.
User A8 Data will be displayed from {SREGB-1}.
Date changed DD-MON-YYYY Data will be displayed from {SREGB-1}.
Registration Prohibited for Financial Reasons A1 If the student is linked to a status code in {FSAO-12} that is linked to action code R, a 'Y' will be displayed.
Registration Prohibited for Administration Reasons A1 If the student is linked to a status code in {SREGL-2} that is linked to action codes AR or RA, a 'Y' will be displayed.
Photo   If a photo was uploaded in the system the photo will be displayed.
Balance:  Fee Account  (Debit - Credit)   If details of a single student are required, a query can be done on this Block with subsequent queries on the other Blocks to view the full detail. The display of a student’s fee account information is controlled via the validation “DF” in option {FSAM-3}.

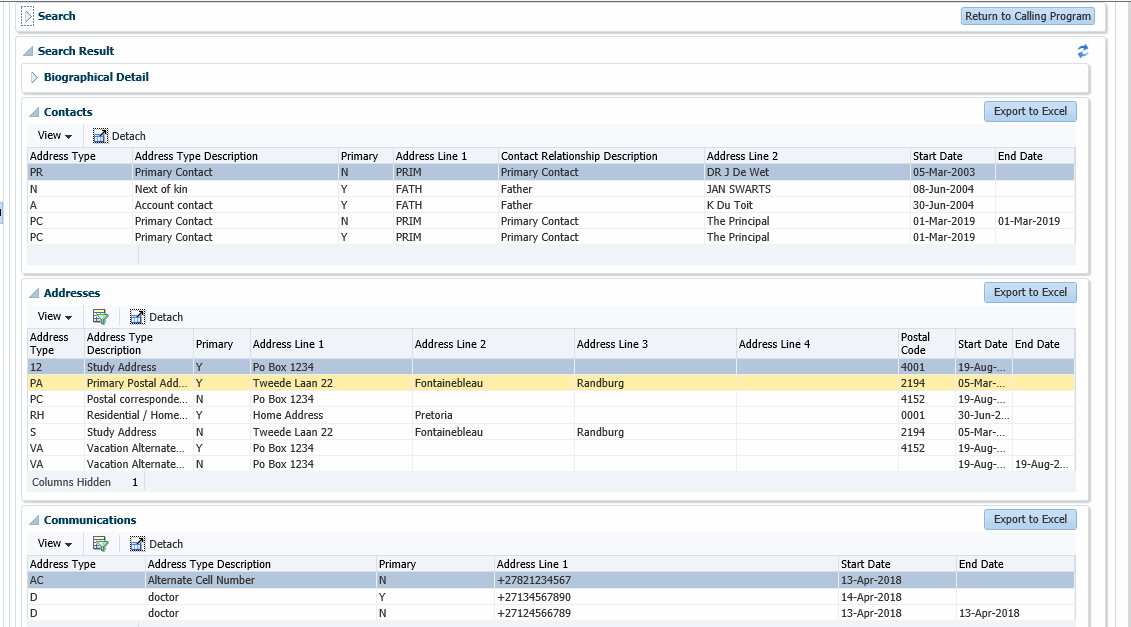

View Address Detail Button  When the user selects this button, the address detail of the student is displayed.  To exit this popup the user needs to click on the 'Return' button as highlighted with yellow in the example below.



Example
of the address detail:

Example of sstudy-21b1



3.    Options

The various options displayed on the EP are linked via {STWEBM-2} for business process STUDENTEP. The options are limited to converted ADF student options which have all been linked by default. These can be deactivated by setting the Active field to N - No. Do not remove the record.

Available options are:

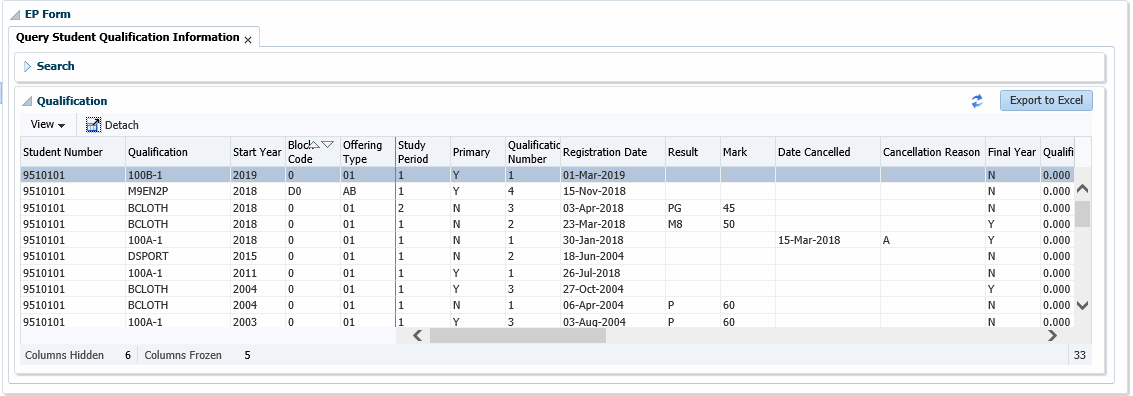

Qualification records exist for each year and qualification that a student was registered for at the institution and these records can be queried on this screen.

Example:


Example of sstudy-21b1



Field Type
&
Length
Description
Student Number N9 The system displays the student number here if the student was queried in the first Block.

Qualification A6 The code and description of the Qualification for which the student was enrolled.

Description A40 The description of the qualification.
Start Year (of Registration) YYYY A student’s registration period may be longer than one calendar year. The start year displayed will be according to the values entered in census dates option {GOPS-1}.

Block Code A2 The academic block of this registration.

Offering Type A2 The code and description of the Offering Type for which the student was enrolled.

Study Period N1 The study period of the qualification.

Primary A1 This indicates whether this is the student’s primary qualification or not.

Qualification Number N2 The number of the qualification assigned by the system.

Registration Date DD-MON-YYYY The actual date on which this registration record was entered on the system.

Annual Result A2 The code of the Annual Result of the student, as entered under option {SSTUD7-2}, TAB - Student Annual Results, is displayed here.
The Annual Result will not be displayed when
  • the SOD value is (Y)es for subsystem 'SR', Code 'AE' {SMNT-12} and
  • the suppress indicator is 'Y' on {SSTUDY-1} for cycle 'E' and
  • Any of the subjects for the qualification record is in a cycle where the results are suppressed

Overall Mark N4 The overall mark obtained for this period of study, as entered under option {SSTUD7-2}, TAB - Student Annual Results, is displayed here.
The Overall Mark will not be displayed when
  • the SOD value is (Y)es for subsystem 'SR', Code 'AE' {SMNT-12} and
  • the suppress indicator is 'Y' on {SSTUDY-1} for cycle 'E' and
  • Any of the subjects for the qualification record is in a cycle where the results are suppressed

Date Cancelled DD-MON-YYYY If the enrolment of the student was cancelled under option {SREGC-3), the date is displayed here.

Cancellation Reason A1 The cancellation code indicating the reason for the above cancellation is displayed here.

Final Year A1 A (Y)es or a (N)o is displayed here, indicating if the year of registration was the final year for this student.

CGPA
GPA
Credit Point N8.3 A display field indicating the qualification credit point value calculated from the subject credit points as defined in {SACADO-10}, according the rule on {SSTUD3-3}, TAB - Curriculum. The credit of a subject with a Pass result will be included if the field GPA / SWA is set to 'Y'.

FTEN Status A1 This status is calculated from data on the system under option {SREGS-2}. The values are:
  • F       First time entry.
  • T       Transfer student (from another institution).
  • E       Entering student (in this qualification).
  • N       Non-entering student.
(refer STATS for detail)

End Year YYYY A student’s registration period may be longer than one calendar year. The end year displayed will be according to the values entered in census dates option {GOPS-1}.

Contract Code   The 'Contract Code' under which the student was registered for this qualification. See manual {SREGAR-1} for more information.
Contract Date   The 'Contract Code' under which the student was registered for this qualification. See manual {SREGAR-1} for more information.
Contractee   The debtor code that fulfills the role as contractee for this contract.
Contributing Employer   The contributing employer as the second payee for this contract.
SDR Assist Code   The SDR assistance code. This code is used in the statutory reporting in New Zealand
Student Type   The Student Type of the student.  See manual {SREGAR-1} for more information.
Result A2 The code of the Annual Result of the student, as entered under option {SSTUD7-2}, TAB - Student Annual Results, is displayed here.
The Annual Result will not be displayed when
  • the SOD value is (Y)es for subsystem 'SR', Code 'AE' {SMNT-12} and
  • the suppress indicator is 'Y' on {SSTUDY-1} for cycle 'E' and
  • Any of the subjects for the qualification record is in a cycle where the results are suppressed
Mark
The overall mark obtained for this period of study, as entered under option {SSTUD7-2}, TAB - Student Annual Results, is displayed here.
The Overall Mark will not be displayed when
  • the SOD value is (Y)es for subsystem 'SR', Code 'AE' {SMNT-12} and
  • the suppress indicator is 'Y' on {SSTUDY-1} for cycle 'E' and
  • Any of the subjects for the qualification record is in a cycle where the results are suppressed
Approved Registration Fee

Approved Qualification Fee

Registration Fee Charged

Qualification Fee Charged

Created by WEB   This is an indication if the student was registered using the iEnabler Web Registration.



Note:  The Annual Result will not be displayed when the suppress indicator is 'Y' on {SSTUDY-1} for cycle 'E' and the SOD value is (Y)es for subsystem 'SR', Code 'AE' {SMNT-12}.

To preclude the disclosure of examination results via this option before they are formally published, the system will not display any results for the current “Exam Mark” cycles ‘E’ and “Change Mark and Results Cycle” ‘F’ which have been set to “SUPPRESS”, as defined under option {SSTUDY-1}, TAB - Academic Structure and Exams and where the SOD value is (Y)es for subsystem 'SR', Code 'AE' {SMNT-12}.  If the value for the SOD is set to (N), the subject results will be displayed, but no qualification results.  The current cycles are displayed in the 'Suppressed Cycles' of this screen and examination marks, final marks and final results will not be displayed for subjects that have examinations within these examination months.

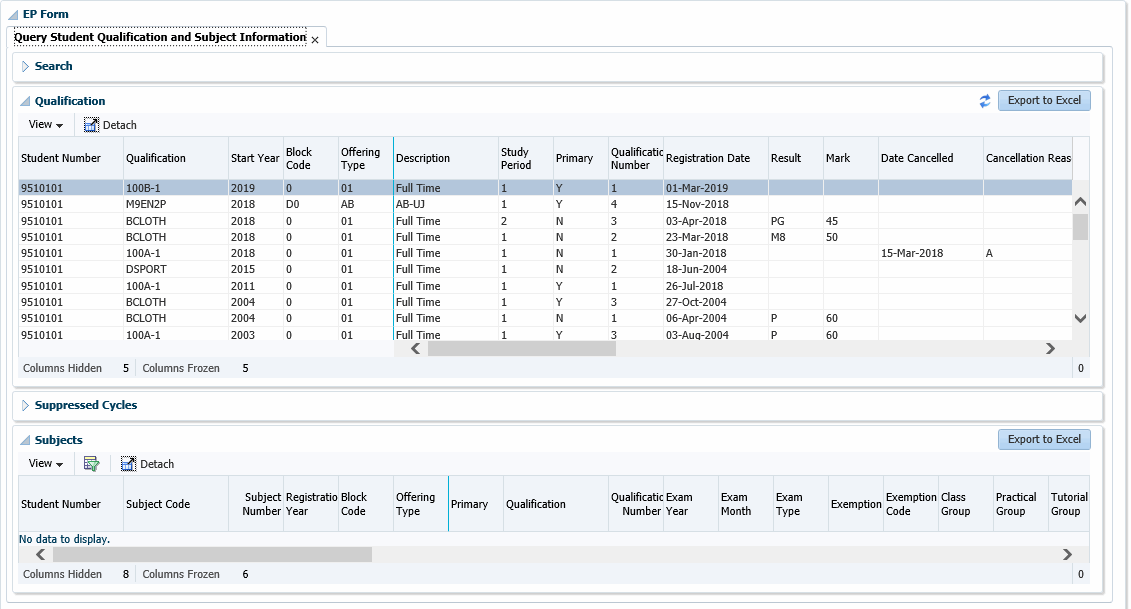

Subject records exist for each year and subject that a student was registered for at the institution and these records can be queried on this screen.

NOTE: As a general query on this block would retrieve every subject enrolment record in the database thousands of records would, have to be sorted and displayed. This can place huge demands on the system and decrease the response times for all users. The user is therefore required to enter the Subject Code, Year or Student number, for a query to be accurate.




Example of sstudy-21b2




The fields on each subject record are:

Field Type
&
Length
Description
Student number N9 The student number. If a query was done in the first Block, the student number is displayed here.

Exclusion status codes can be linked to this program in {SCODE-9} Tab "Program/Status/Sequence". If the student who is being queried is also linked to one of these statuses, the background colour of this field will turn to green. On a right click action on the student number, the program drills down to option {SREGL-6}  to view/override statuses against students
Subject   The following additional detail can be viewed from this field if the users right clicks on the subject.

View Assessment / Bundle detail This option will display the same detail as on {TASKS1-3}.
    Subject Number Each subject is allocated a sequential number when registered. This number is displayed here.
Registration Year YYYY The year in which the subject enrollment was made.
Block Code A2 The academic block during which the student was registered for this subject.
Offering Type A2 The code of the Offering Type under which this subject is taken.
Primary Indicator A1 The student may have more than one subject record for one registration period. The primary ‘Y’ record will be the active record.
Qualification Code A6 The code of the qualification against which this subject was registered. Normally this code will be the same as that which was recorded in Block 2 but, in the case of registrations for additional subjects under option {SREGAR-2}, the code of the qualification for which the additional subject is valid, will be displayed.
Qualification Number N2 A sequential number per year of registration is allocated to a qualification upon registration. All subjects registered for that qualification are linked to the same qualification number.
Exam Year N2 The examination year of this subject.
Exam Month N2 The examination month of this subject.
Examination Type A1 These types are defined in the academic structure, option {SCODE2-2}, TAB - Exam Types. Normal enrollments would be code “N”.
Exemption A1 A Y in this field indicates that the student is exempted for this subject.
Exemption Code A1 The code indicates the type of exemption that was granted to this student for the subject.
Groups CLASS, PRACTICAL, TUTORIAL, EXAM 4 x A2 A subject can have (C)lass, (P)ractical and (T)utorial Groups and a student can be allocated to any combination of these groups. The class group value defaults to “A” during registration, but can be amended under option {SREGC-6}. The group to which this student was allocated will be displayed. If nothing is displayed, the subject is not linked to that type of group. The last of these four fields is the examination group to which the student has been allocated.
Exam Granted A2 A (Y)es or (N)o will show whether a student has admission to the examination in that subject.
Half period Mark N3 The Half Period Mark, which may be calculated from the Mark Type and Assessment marks, is displayed.
Year Mark N3 The Full Period Mark in respect of this subject enrollment.
Exam Mark N4 The Examination Mark in respect of this subject enrollment.
Final Mark N4 The Final Mark is displayed here. This mark is typically calculated from the Year Mark and the Examination Mark. The Examination Result is calculated from this mark.
Exam Result A2 The code of the result obtained in this subject. The result type (P)ass or (F)ail will also be displayed.
Result Date DD-MON-YYY The date on which the Exam Result was entered for the first time
Registration Date DD-MON-YYYY The date on which the registration for this subject took place.
Cancellation Date DD-MON-YYYY If the enrollment in this subject has been canceled, the date of cancellation is displayed here.
Credit Point N7.3 A display field indicating the subject credit point value as defined on {SACAD-14}, TAB - Subject Information, if the rules were set up in {SSTUD3-3}, TAB - Promotions.

If the student has been awarded a:
  • Pass result or no result at all, the credit of the subject will display.
  • Fail result, a value of 0.00 will be displayed.
  • Result code that no longer exists in {SCODE-23}, a value of NULL is displayed.
Attendance Factor N3 The attendance factor is displayed.
In many cases, the database keeps “calculated” as well as “adjusted” values in respect of marks and results. Only the Adjusted Values are displayed on this screen.
Projected Attendance Factor N3
This field displays the Projected Attendance Factor for the subject, calculated from the Attendance Register (PL0001-11)
STATS Indicator A1 When a subject is registered in option {SREGAR-1}, this indicator is set to (Y)es. The batch registration program will set this indicator to (N)o {SSTUD4-21}. This field is used to determine whether a subject should be reported for STATS purposes on table 2.9.

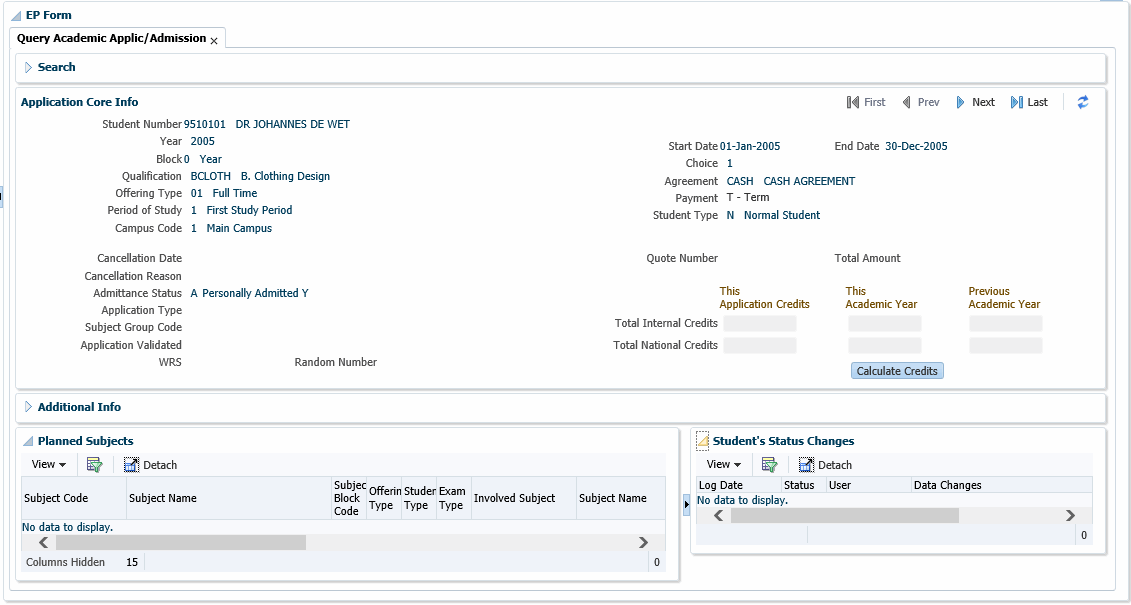

This is the same program linked on {FBLO1-1} to display the 'Application' of a student as created on {SNAPPA-1}.

Example:

Example of ...





Example:

Example of ...





Example:

Example of ...





Example:

Example of ...


Processing
Rules

  User access granted via functions defined on {USERS-2} and {USERS-3} play a very important role regarding Insert/Update and delete privileges granted to each of the above mentioned options. If the user is linked to a function which grants Update privileges then the option via the EP will allow Insert/Update and Delete.

See Also:
History of Changes

Date System Version By Whom Job Description
06-Jun-2007 v01.0.0.0 Amanda Nell T130138 New manual format.
18-Jul-2007 v01.0.0.1 Phlip Pretorius T142782 Add info re: qualification credit point and subject credits.
24-Nov-2008 v01.0.0.1 Magda van der Westhuizen t151710 Update manual:  Language Editing:  Juliet Gillies.
29-Aug-2011 v02.0.0.0 Magda van der Westhuizen t173811 Update:  Student Statuses on Student Number
16-Mar-2012 v03.0.0.0 Magda van der Westhuizen t178552 Insert new rules regarding the suppress of exam / qual marks with new SOD SR / AE.
27-May-2012 v03.0.0.1 Frans Pelser T182112 Add Override of Student Statusses to processing rules (ATOV of T180557)
19-Mar-2015 v04.0.0.0 Magda van der Westhuizen t205922 Change old SACAD menu's and links to new SACADO menu's and links.
12-Oct-2015 v04.0.0.0 Magda van der Westhuizen t196723 Convert manual to INT4.0
21-Jan-2016 v04.0.0.0 Magda van der Westhuizen t211736 Change version number back to v04.0.0.0
08-Jun-2016 v04.0.0.0 Magda van der Westhuizen t209850 Insert Status Type rules.
10-Jun-2016 v04.0.0.0 Magda van der Westhuizen t196723 Update images.
22-Jun-2016
v04.0.0.0
David Goodrum
214901
EP integration with STUDENTEP business process
11-Mar-2019
v04.1.0.0
Ndivhanga Mushando
t233939
ATOV 233939-Add new fields 'Attendance Factor' and 'Projected Attendance Factor' on qualification level and subject 'Projected Attendance Factor' and change images
